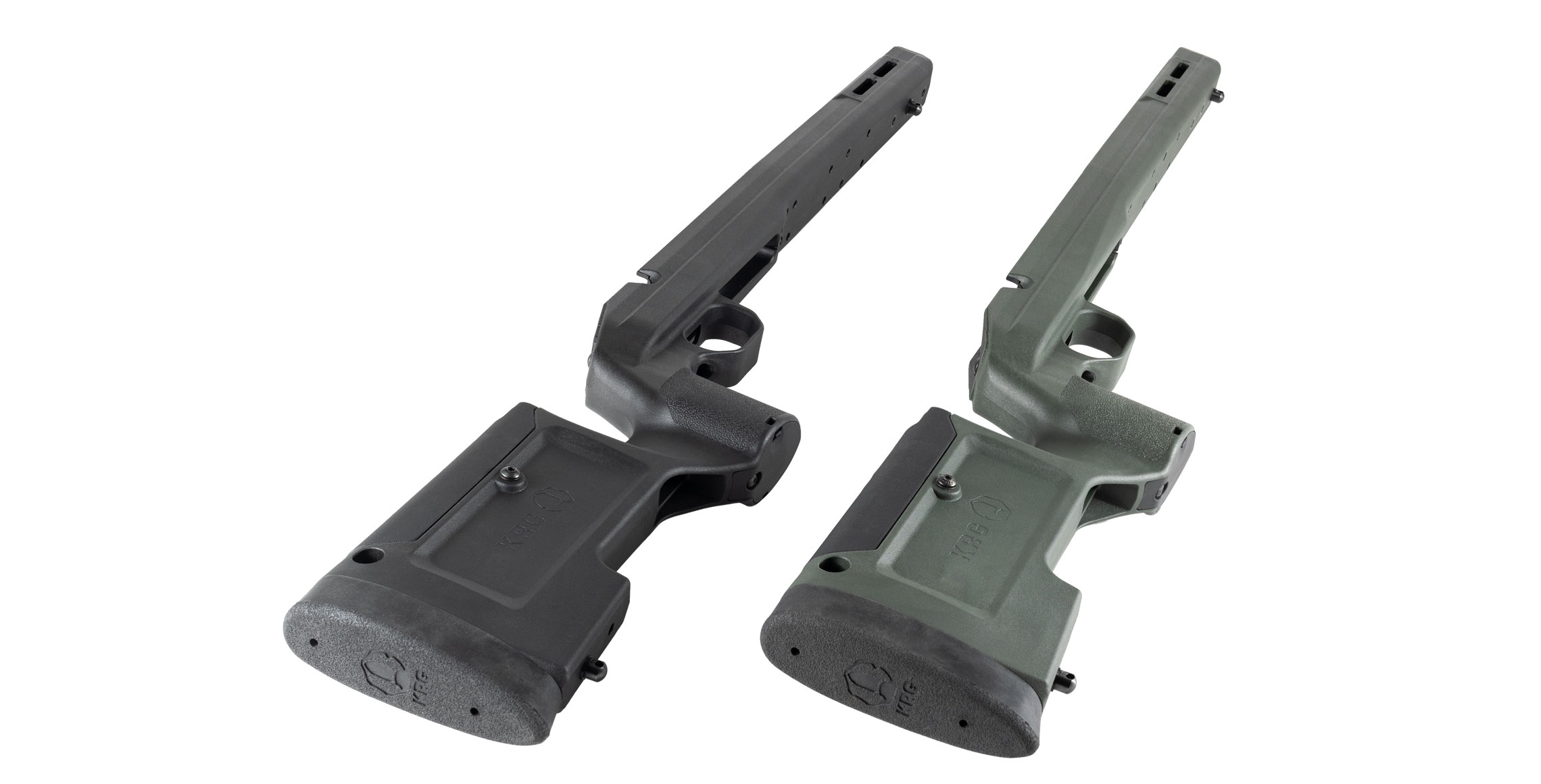

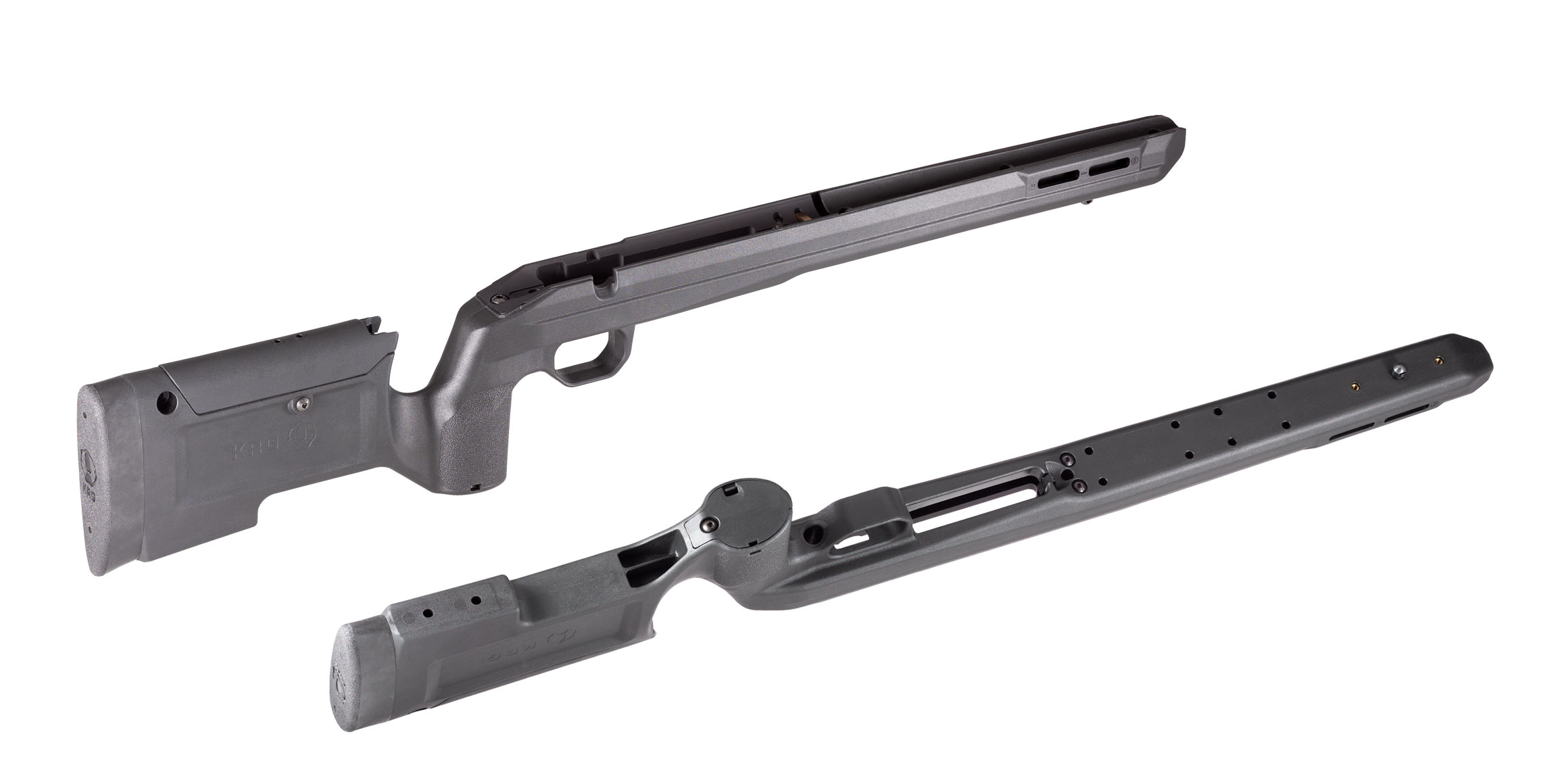

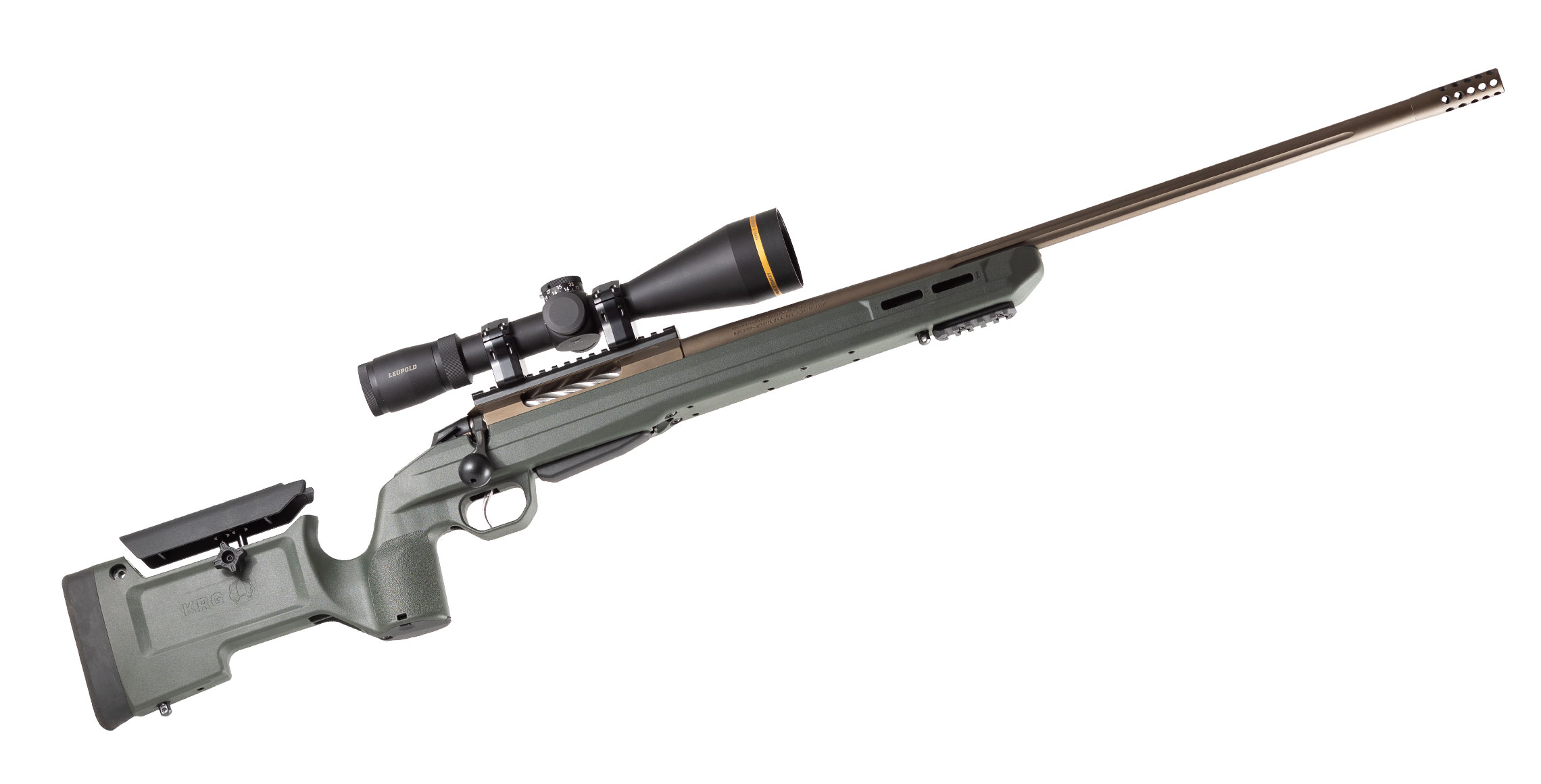

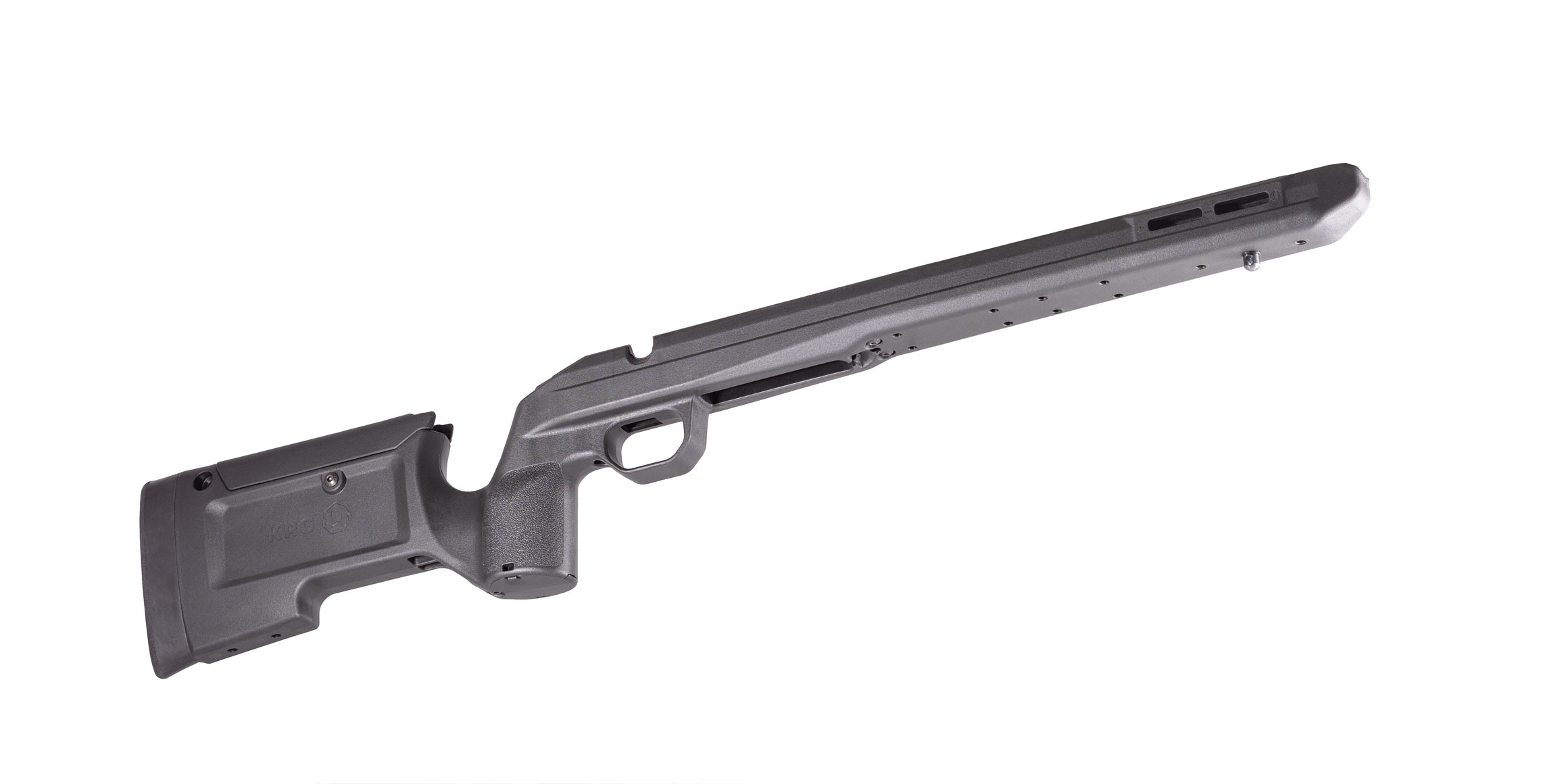

KRG proudly introduces the Echo Chassis for Tikka T3. Our first Tikka chassis specifically developed to be compatible with both short and long action cartridges. The Echo maintains the superior ergonomics of our popular Bravo chassis while further refining it with a thinner forend and fewer parts. The result is a streamlined lightweight chassis ideal for long range hunting and general-purpose use.
The Echo features a reinforced polymer unibody that feels great in the hand while limiting heat/cold transfer when conditions get harsh. Since this chassis is all about keeping things simple, it’s set up to take lighter profile barrels, requires no bedding, and allows you to use one chassis for both short and long action cartridges. So, whether you’re looking to bring our exceptional ergonomics to your factory Tikka, or you just want a solid platform on your next hunt, the KRG Echo Chassis will deliver the superior performance you’ve come to expect from KRG.
NOTE: This chassis uses factory Tikka T3/T3x magazines
M-LOK accessories are available here:
KRG specific accessories are available here:
https://australiantacticalprecision.com.au/brand/krg/
Specifications
Forend:
- The Echo ships with the wide barrel channel insert, which fits up to a “varmint” barrel contour. This channel is 0.95″ at the end of the forend (~10.75″ from the front of the receiver).
- A “Narrow” barrel channel insert is available separately for lighter contour barrels and measures 0.85″ at the end of the forend.
- Polymer for light weight and to eliminate heat transfer to/from the shooter’s hand.
- Mounting holes at various positions will take Sling swivels, L2 Picatinny rails, and future attachments.(Ships with front and rear sling studs installed)
- Mlok slots in sides of the forend for universal accessories mounting

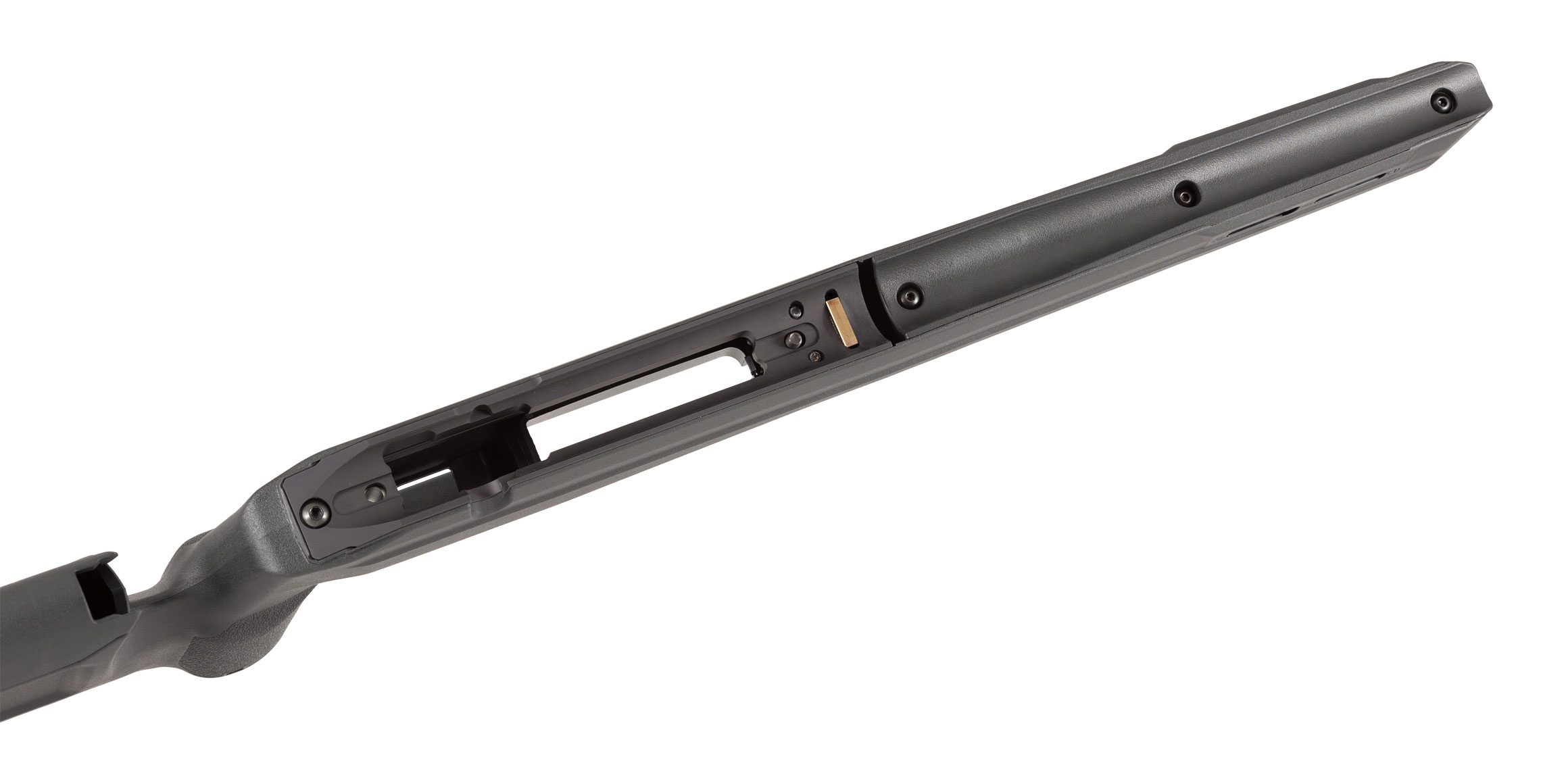

“Backbone”:
- A 9.5″ aluminum backbone fully supports the action and requires no bedding.
- Radius bedding system which is CNC’d into aluminum for consistent contact between action and chassis.
- Hardened stainless steel recoil lug instead of aluminum ones found on stock T3’s.

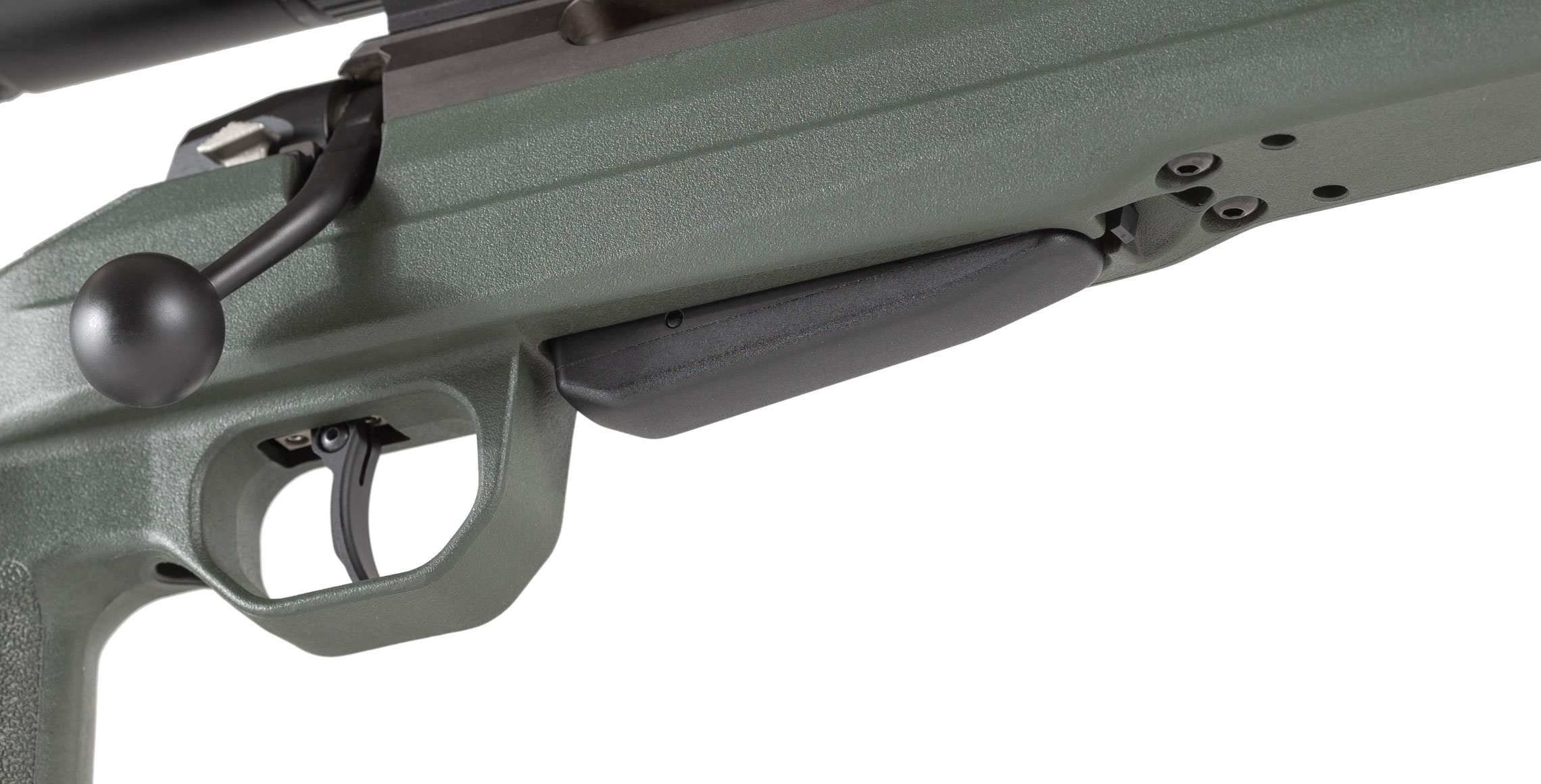

- Designed to accept factory Tikka T3 Polymer magazines for both long and short action cartridges.

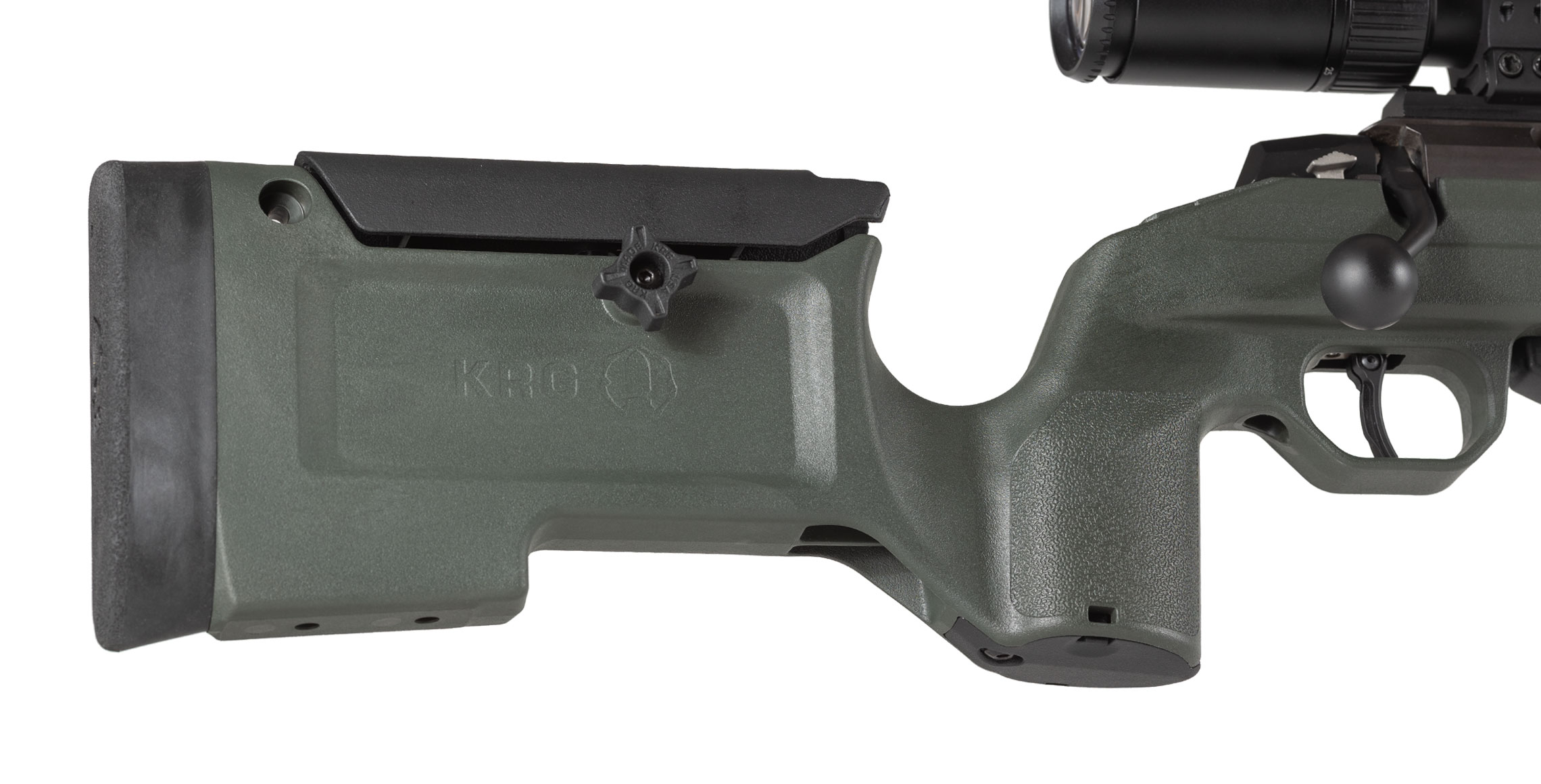

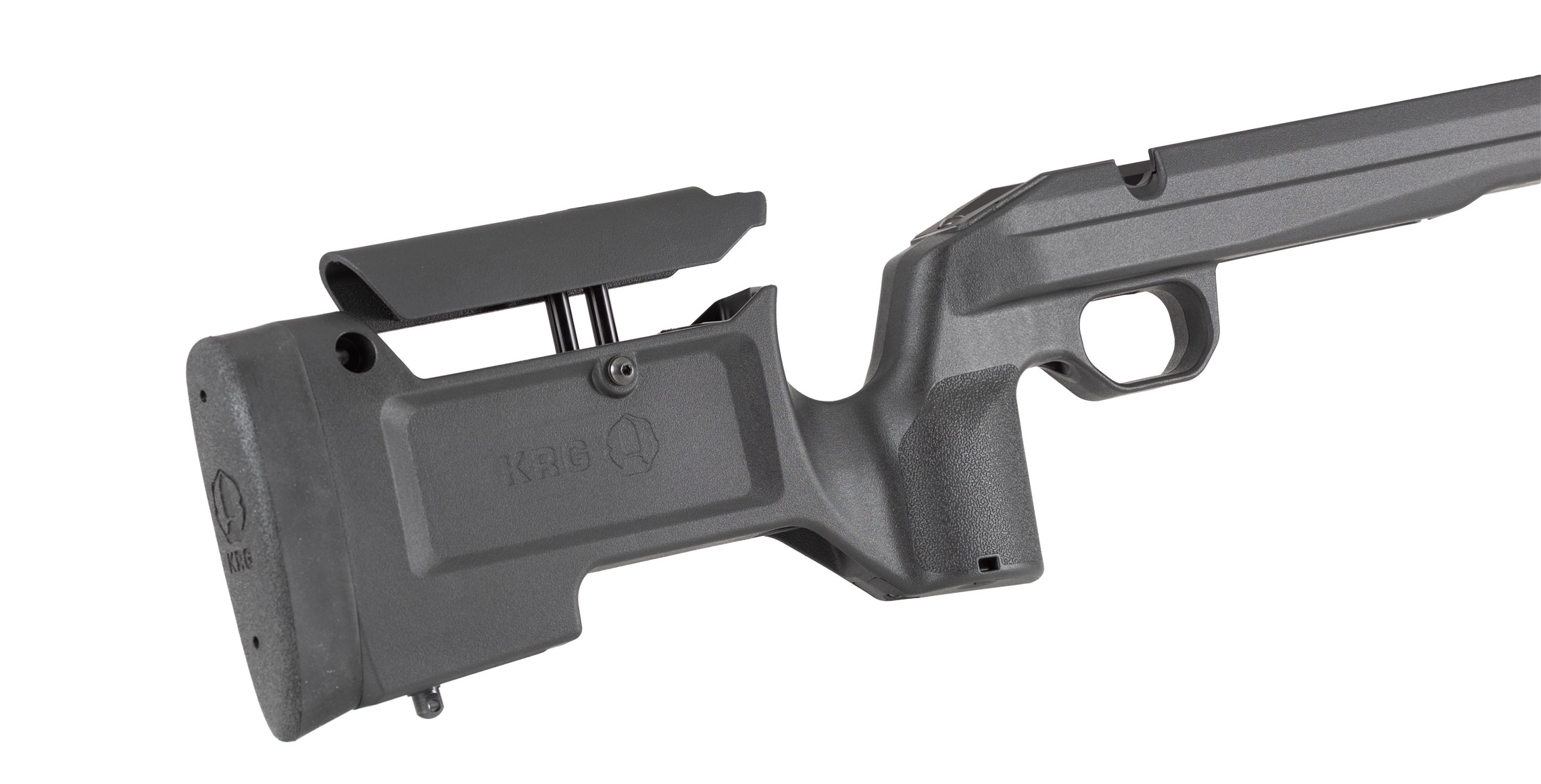

Cheekpiece:
- Infinitely adjustable within range (~1” travel).
- Can be quickly removed and re-installed, uses a clamp and screw design.
- Made of polymer to limit heat transfer to or away from your face.
