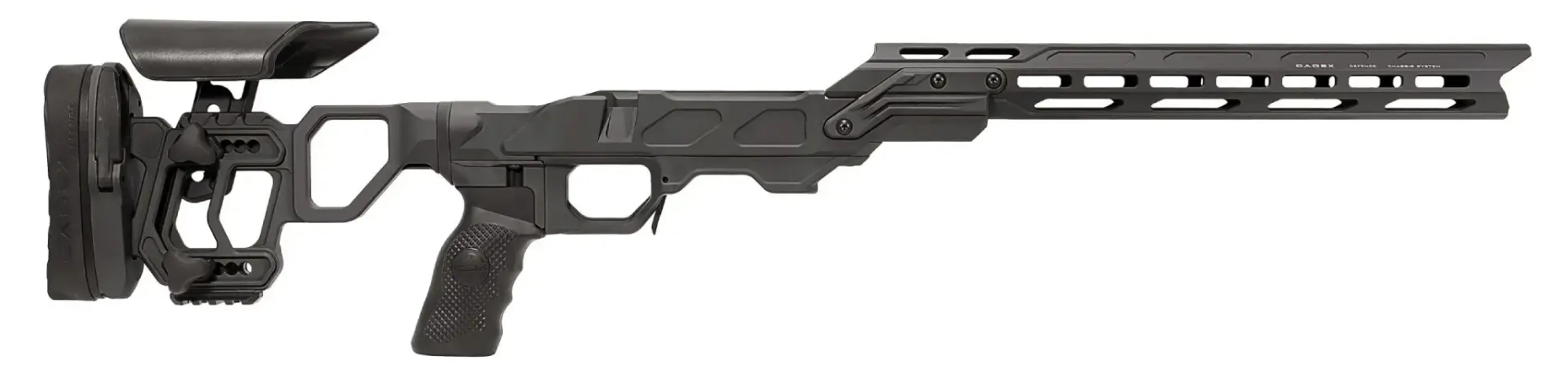

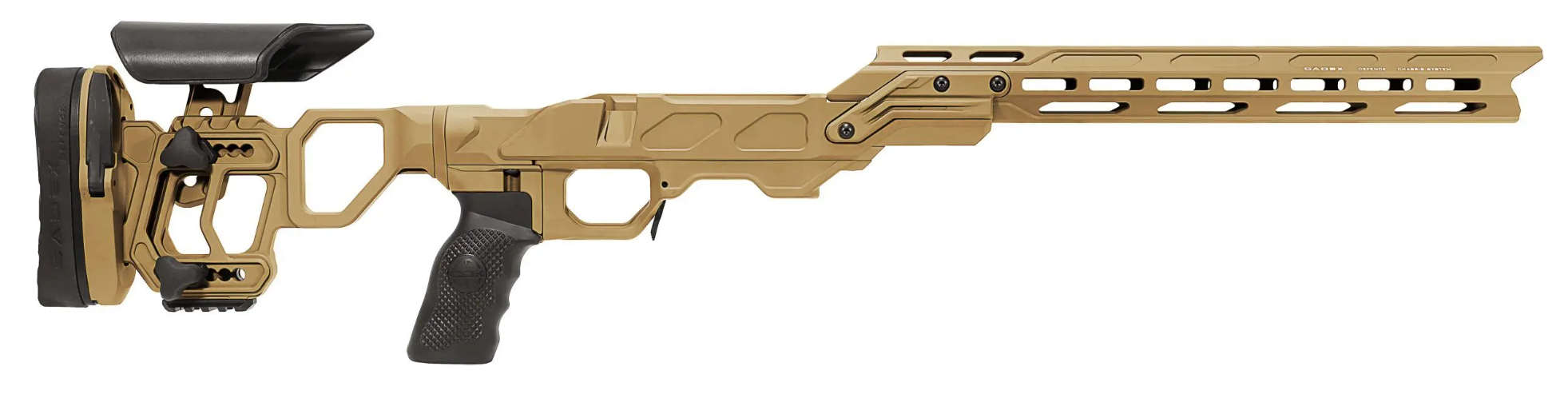

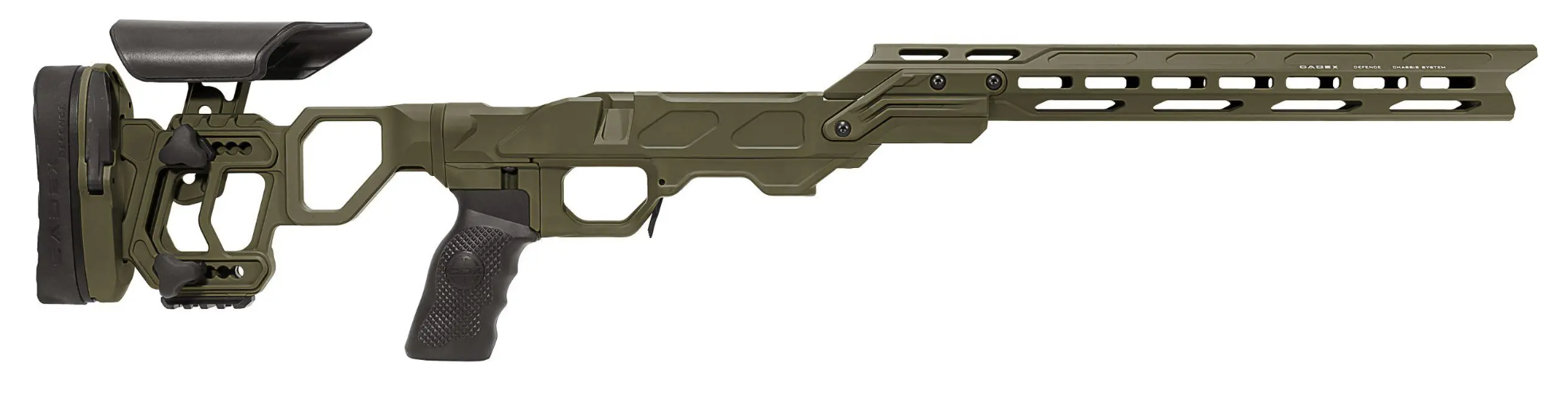

Cadex Field Competition Rifle Chassis System

$2,739.00 inc. GST

SKU: N/A Category: Brand:

The FieldĀ Competition chassis features an open top design and is perfect for custom actions with integrated top rails, it incorporates a longer mirage mitigation technology fore-end for more bipod placement possibilities. The fore-end tube is compatible with an infinite selection of M-LOK accessories. Perfect for custom rifle builds and PRS competitions, it combines lots of features required by the most demanding shooters in a more economical fixed stock configuration.

Select your rifle variant from the drop down list. SA is Short Action, LA is Long Action. RH is for Right Handed.

Note: Picatinny rails and sling mounts in photos not included

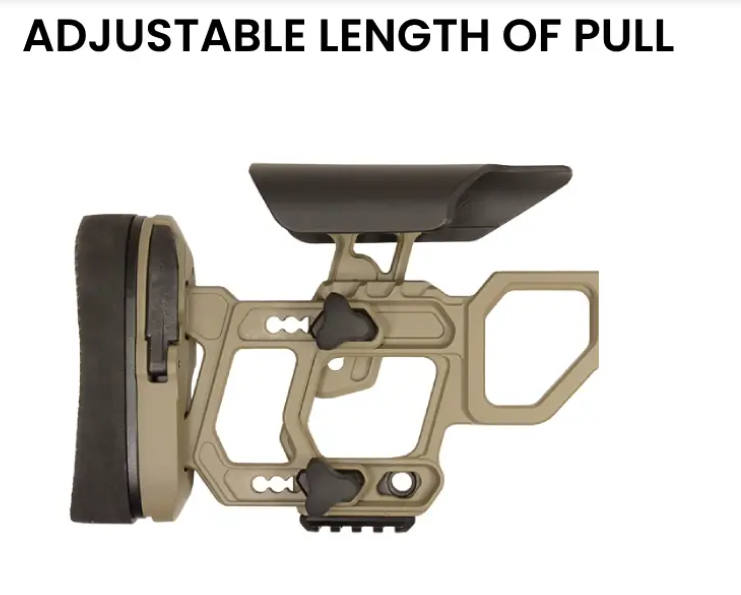

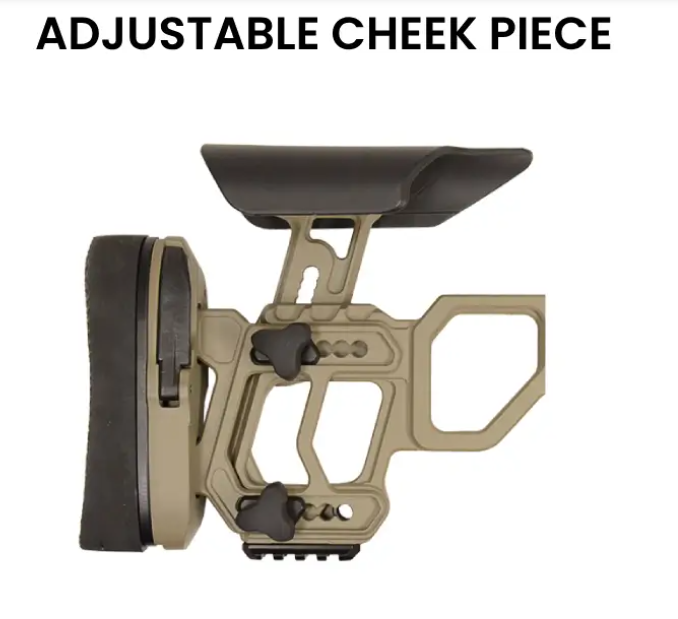

  1. Tool-free fully adjustable skeleton stock for length of pull, cheek piece and recoil pad height. Includes a neoprene cheek pad.
  2. Cleaning rod opening for easier cleaning
  3. Monopod rail or optional bean bag riders.
  4. Finger-grooved Cadex rubberized grip.
  5. Oversized trigger guard and magazine release for easy manipulation with gloves.
  6. The optic can be mounted directly on the action using traditional scope bases, built-in action rail or optional Picatinny rail.
  7. Made from aircraft grade 6061-T6 aluminum billets, anodized and painted with a military grade non-reflective paint.
  8. Detachable base provides easy trigger access for maintenance and trigger adjustment. This allows the platform to maintain zero. Made of aluminum.
  9. AICS magazine compatible.
  10. Optional centre accessory rail kit (2) – Not shown (sold separately)
  11. Optional centre bipod rail or tripod adaptor (sold separately)
  12. A. Optional M-LOK bipod/sling adaptor (sold separately)
    B. Optional M-LOK aluminum bipod rail (sold separately)
  13. M-LOK competition fore-end tube featuring mirage mitigation technology. Longer tube for even more bipod positioning and stability.
  14. Maximum barrel diameter 1.350″.

Features

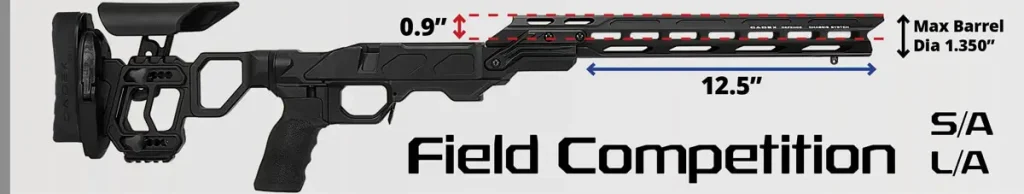

Bore Height, Forend Tube and Max Barrel Diameter

From the top of the fore-end tube to the center of the bore : approx. 0.9″ where indicated by the red arrow. From the lower receiver to the fore-end tube end : approx. 12.5″ where indicated by the blue arrow. Maximum barrel diameter: 1.350″

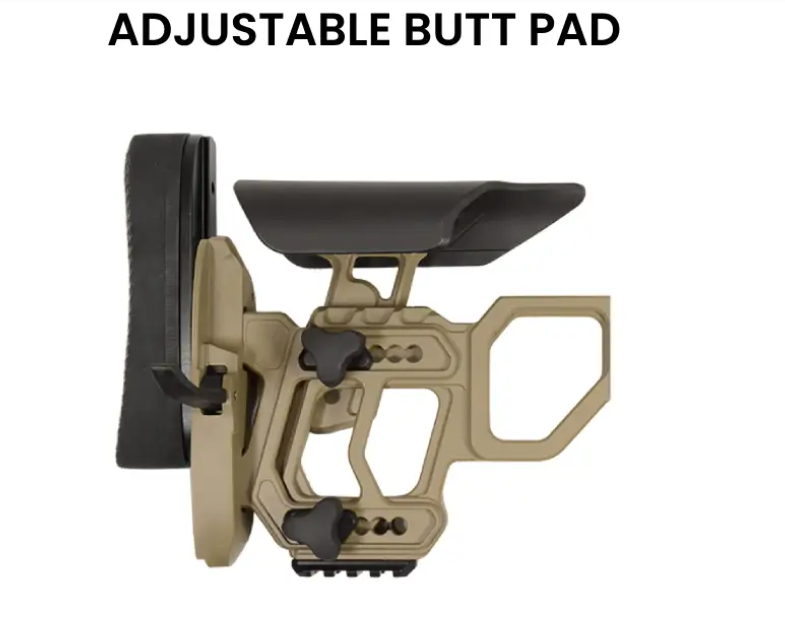

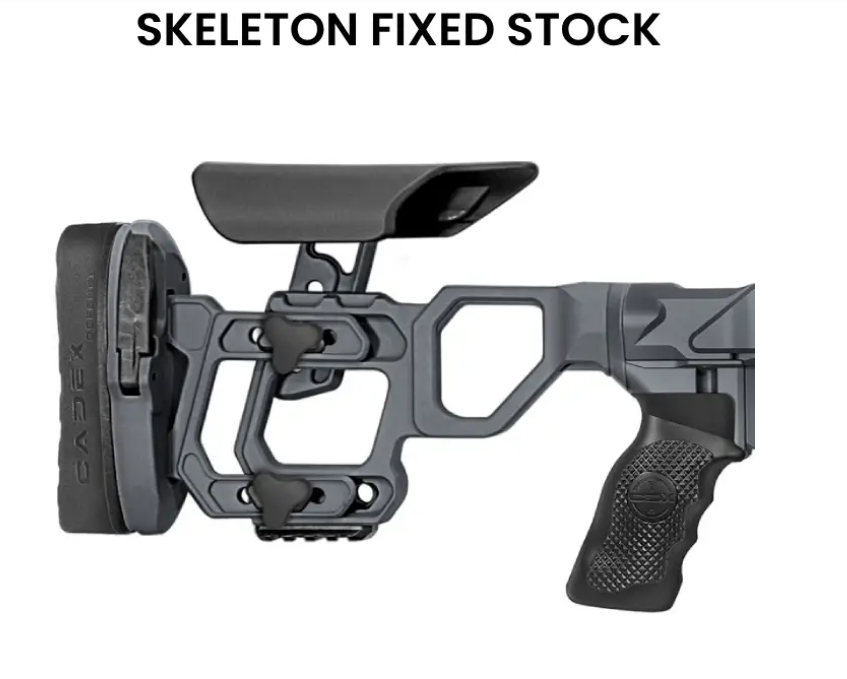

Skeleton Fixed Stock

Skeleton stock variant compatible with most of our chassis models. This fixed stock remain fully adjustable while staying lightweight.

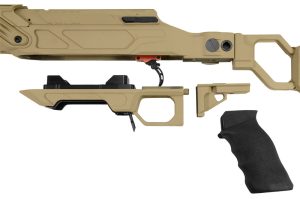

Aluminium Detachable Base

Removable for trigger maintenance or tuning without need to remove your action and lose your zero.

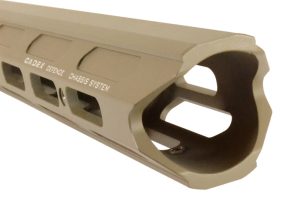

Small Fore-end Tube

Competition fore-end tube featuring mirage technology.

Grip

Finger grooved rubberized Cadex grip.

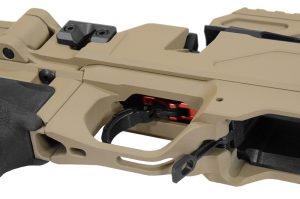

Trigger Guard

Oversized trigger guard and magazine release for easy manipulation with gloves.

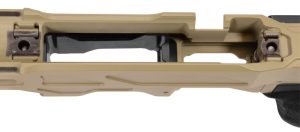

Roller Bedding Technology

Barreled action sits on 4 rollers to provide a stable platform that reduce barrel vibrations.

Ā Short Action

Dimensions: 35.66″ x 2.3″ x 7.17″ (90.58 x 5.84 x 18.21 cm)
Weight (±) : 4.75 lbs (2155 grams)

LongĀ Action

Dimensions: 36.51″ x 2.3″ x 7.17″ (92.74 x 5.84 x 18.21 cm)
Weight (±) : 5.37 lbs (2436 grams)

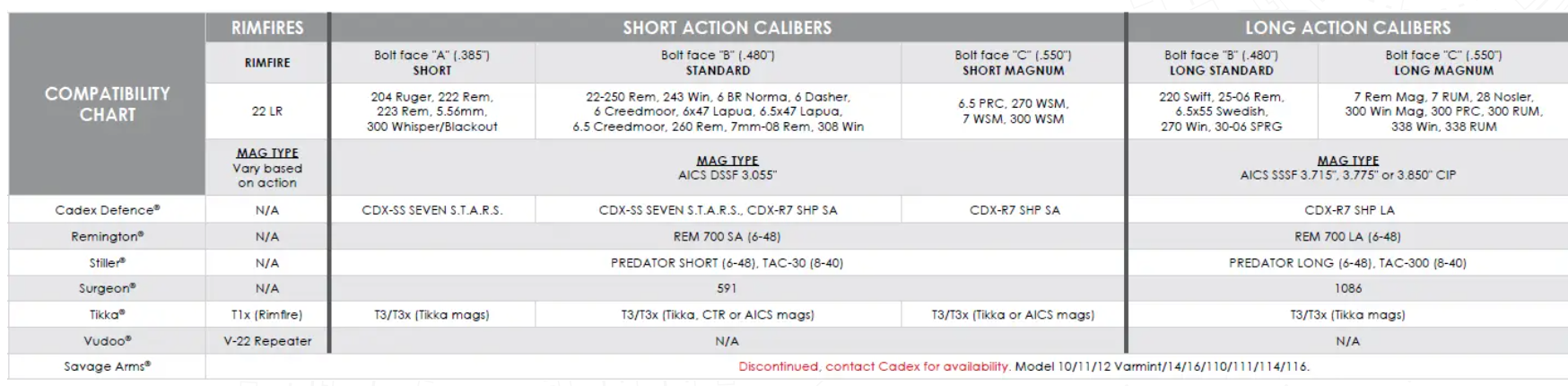

Available Inlets

  • Remington 700 Short Action – Right Handed
  • Remington 700 Long Action – Right Handed (Uses 3.850″ CIP Length Magazines)
  • Tikka T3 / T3x AICS Magazine Short Action – Right Handed
  • Tikka T3 / T3x CTR Magazine Short Action – Right Handed (Uses CTR Magazines)



ATP is an authorised Australian dealer for Cadex. All Cadex products bought from ATP are covered by the Australian Cadex warranty.

Weight 3.01 kg
Variant

Remington 700 LA – RH, Remington 700 SA – RH, Tikka T3/T3x SA AICS Mags – RH, Tikka T3/T3x SA CTR Mags – RH

Colour

Black, Olive Drab Green (ODG), Tan
