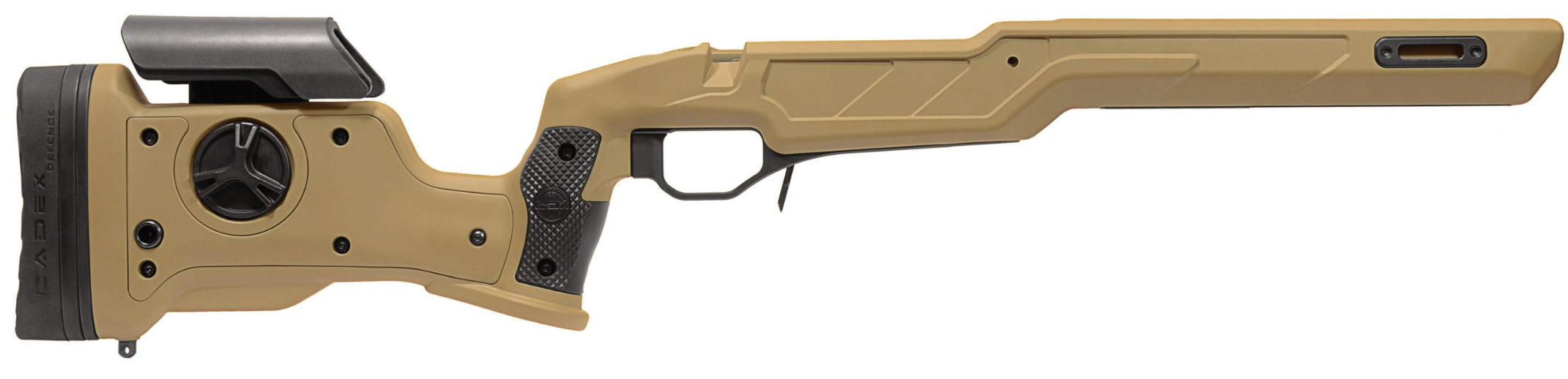

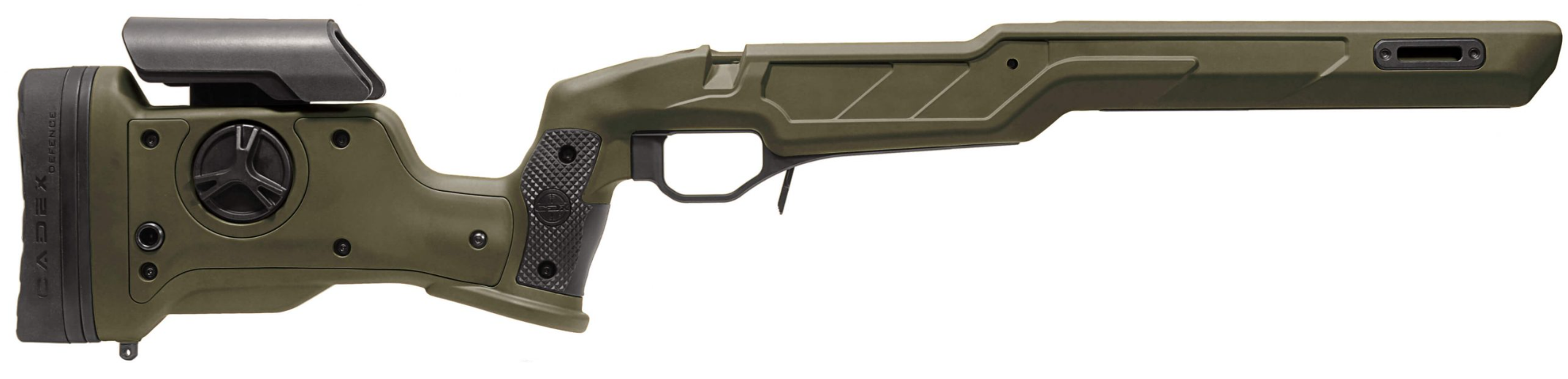

The Cadex Strike Nuke Evo Chassis is designed for shooters who want traditional stock ergonomics while enjoying the benefits of a modern chassis system. Featuring a Gen2 improved design with M-LOK technology and high-density fiberglass reinforced polymer, the Strike Nuke Evo Chassis offers durability and lightweight performance. Additionally, the Strike Nuke Evo Chassis is Cerakote coated to ensure long-lasting protection.
Adjustability and Comfort Features
Moreover, this chassis includes an adjustable recoil pad height and comes with a ¼” spacer, while optional spacers are available to further increase the length of pull. The tool-free, spring-loaded cheek piece adjusts both vertically and side-to-side, providing comfort with its neoprene cheek pad. Furthermore, built-in flush cups allow for quick-detach sling attachments on both sides.
Enhanced Stability and Handling
Besides these features, the Strike Nuke Evo Chassis supports optional monopod rails or bean bag riders to enhance stability. The ergonomic grip angle with a comfortable thumb rest and oversized trigger guard allows easy handling, even with gloves. Lastly, this chassis is compatible with AICS magazines (except for rimfire models) and fits a variety of popular rifle actions.
Select your rifle variant from the drop down list. SA is Short Action, LA is Long Action. RH is for Right Handed.
Note: Picatinny rails and sling mounts in photos not included
SHORT/LONG ACTION
| Dimensions: | 31.97″ x 2.14″ x 6.95″ (81.2 x 5.44 x 17.65 cm) |
| Weight (±) : | 5.1 lbs (2313 grams) |
Features
- Adjustable recoil pad height.
- ¼” spacer included. Optional additional spacers available (sold separately) to increase the length of pull.
- Tool-free spring loaded up and down cheek piece adjustment. Side to side adjustable. Includes a neoprene cheek pad.
- Built-in flush cups for QD sling attachment (both sides).
- Optional monopod rail or bean bag riders (sold separately).
- Optimized grip angle with comfortable thumb rest.
- Oversized trigger guard and magazine release for easy manipulation with gloves.
- Reinforced polymer trigger guard.
- AICS magazine compatible (except for rimfire models).
- Various inlets available.
- Optional M-LOK bipod/sling adaptor (sold separately).
- Optional M-LOK 3.5″ aluminum bipod rail (sold separately).
- Optional M-LOK 3″ modular rail or M-LOK flush cup adaptor (sold separately).
- Ergonomic semi wide fore-end tube with medium and heavy barrel contour inserts.
- Maximum barrel diameter 1.350″ straight taper to 1.250″ at muzzle end.
Specifications

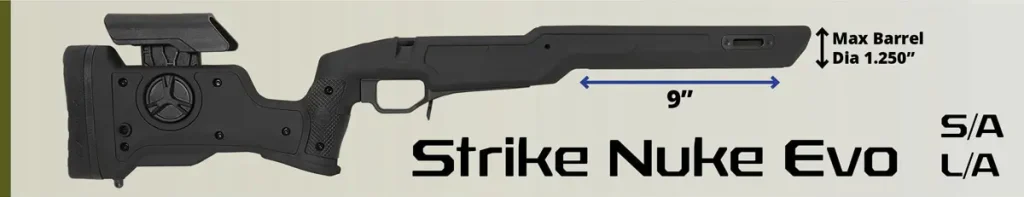

Fore-End tube and max barrel diameter
From the lower receiver to the fore-end tube end: approx. 8.5″. Maximum barrel diameter: 0.770″ – 0.950″

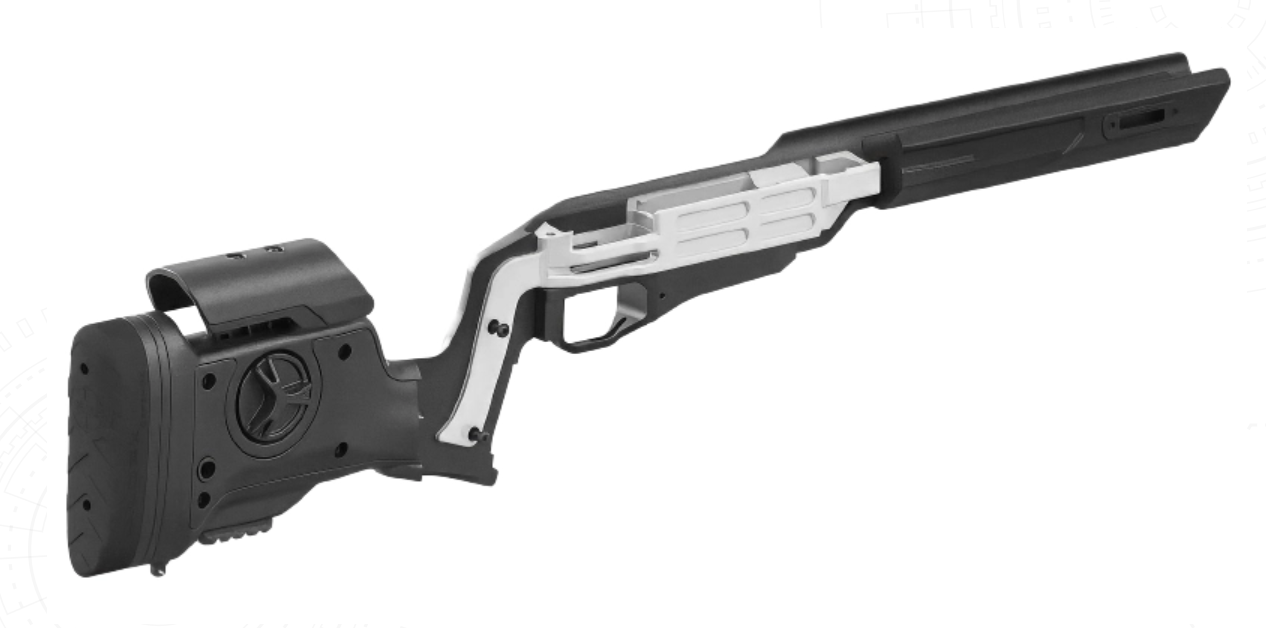

Provides a stable platform that eliminates any movement of the action in the micro-chassis. No bedding required.

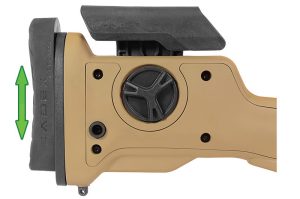

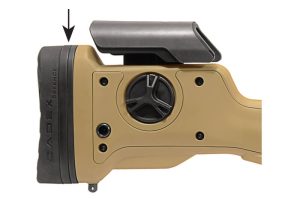

The butt pad can be adjusted 1/2″ up or down.
Adjustable length of pull
Optional spacers can be added for a longer length of pull. (Sold separately)

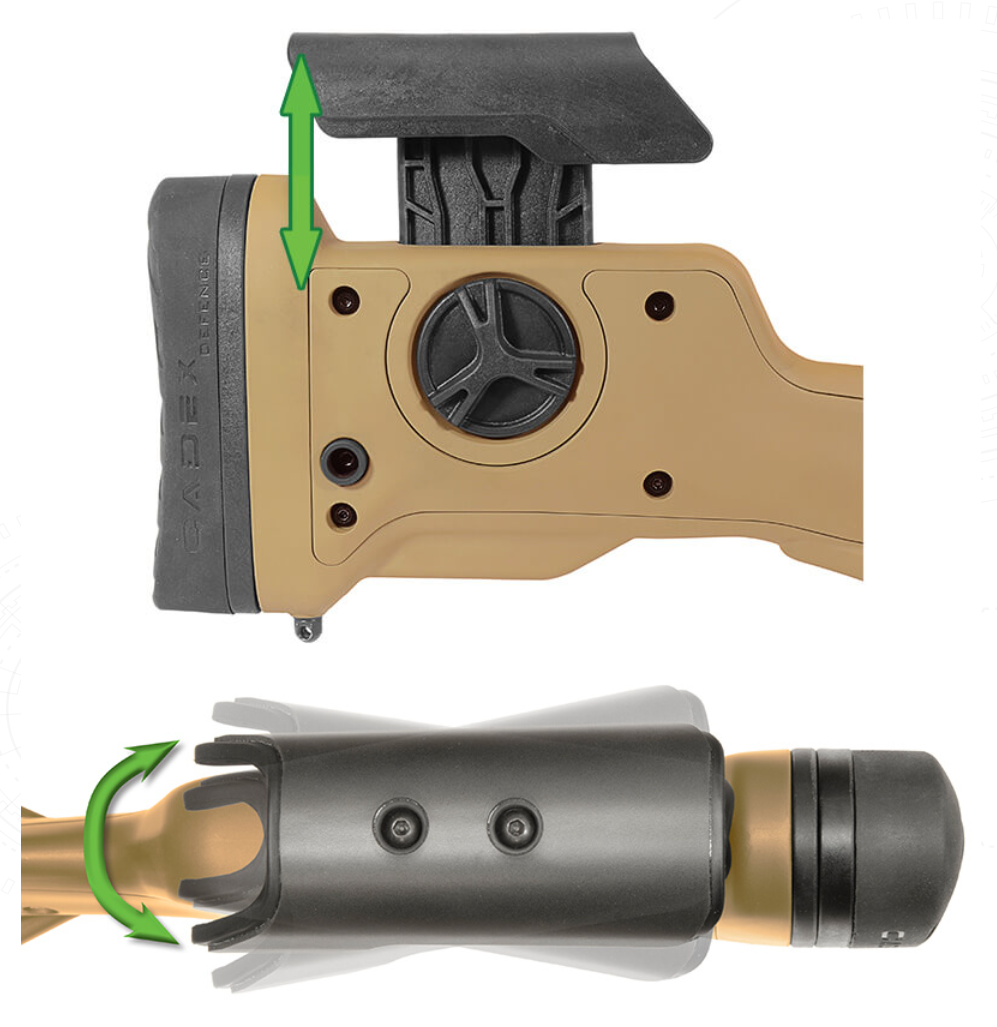

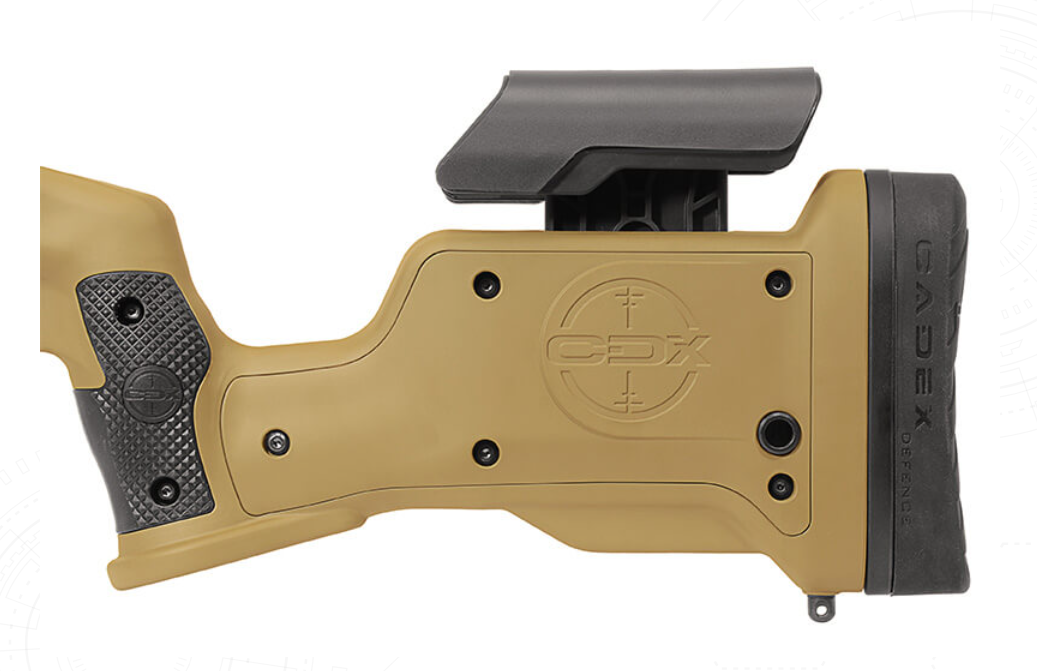

Tool-free spring loaded cheek piece
The cheek rest is adjustable up and down (total travel of 1 inch), right and left (total travel of 5/16 inches), plus in angle for a perfect alignment with the rifle scope eyepiece.
QD Sling Attachment
Built-in flush cups on both sides.

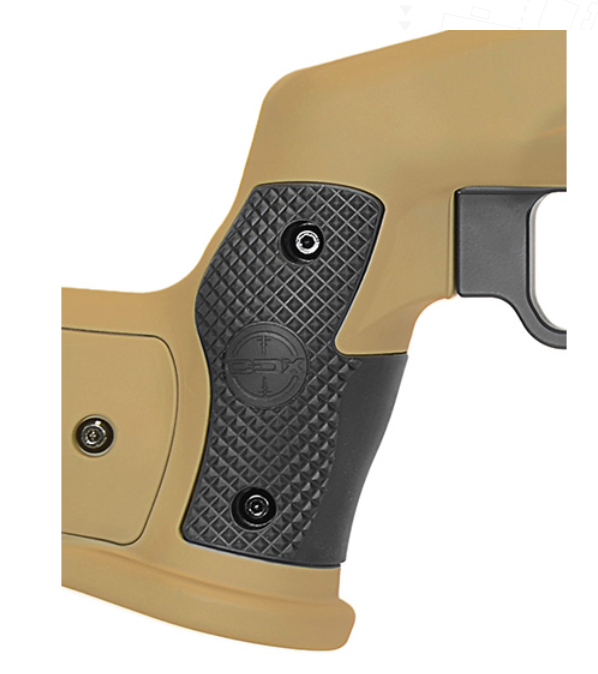

Ambidextrous palm swell comfortable thumb rest.

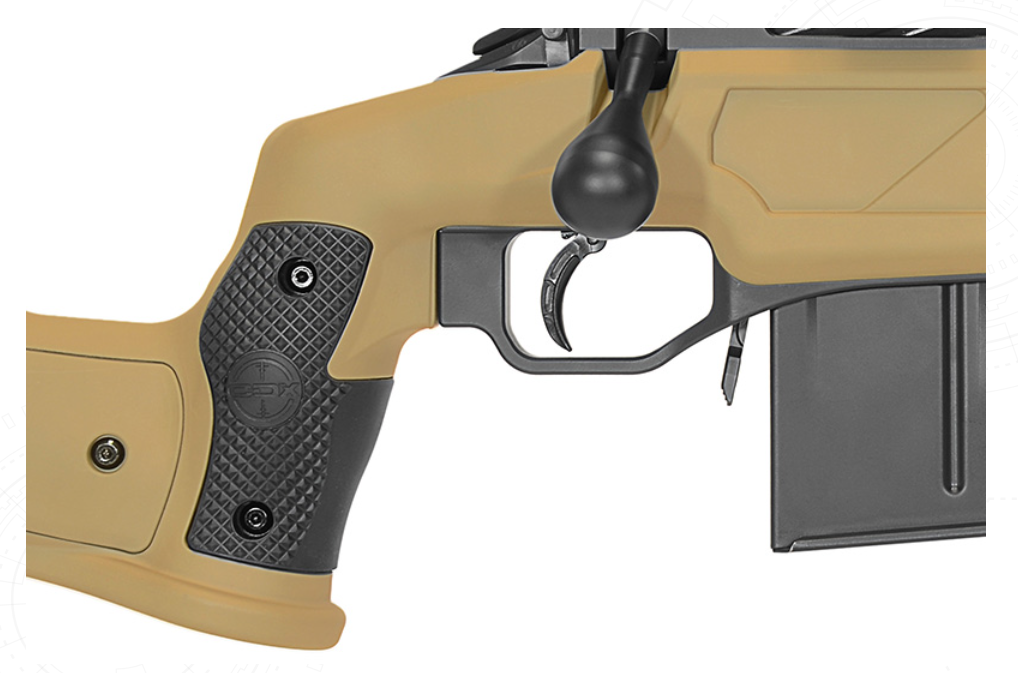

Trigger guard
Oversized trigger guard and magazine release for easy manipulation with gloves.
NOTE
For .223 models the bolt stop may be too long. This can easily be modified by removing the bolt stop in your firearm and trimming the contact face.
Compatibility
- Remington 700 Short Action, Right Handed
- Remington 700 Long Action, Right Handed (uses 3.715″ and 3.850″ Length AICS magazines)
- Tikka T3 / T3x AICS Magazine Short Action, Right Handed
- Tikka T1x Rimfire, Right Handed (uses OEM T1x magazines)
- Vudoo V-22 Rimfire, Right Handed (uses OEM V22 magazines)
