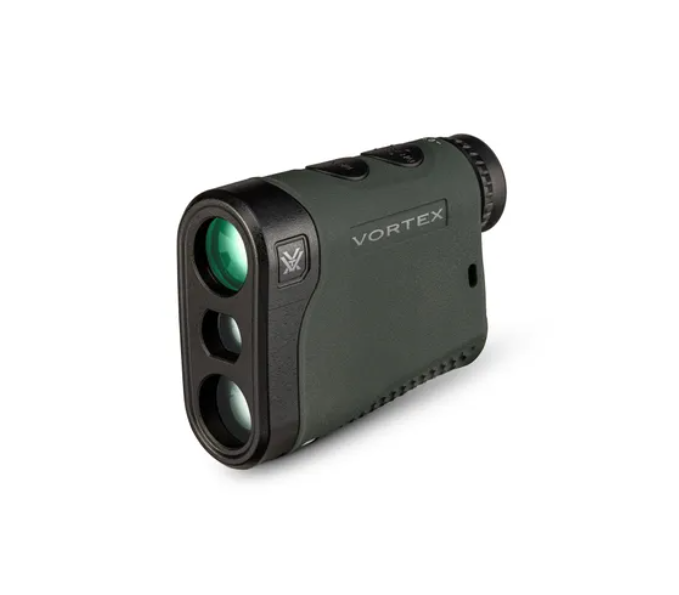

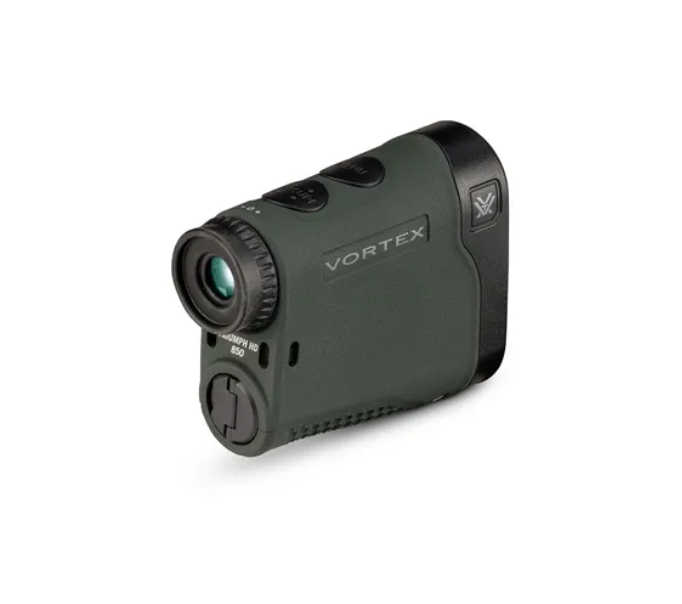

Ranging made simple for the way you hunt. The Triumph™ HD 850 Laser Rangefinder delivers fast, accurate readings for hair-splitting shots that lead to short blood trails. With intuitive range and target modes preferred by rifle and bowhunters, it’s ready for planning a stalk or taking the shot in thick woods or open terrain. Compact and lightweight, it’s made for deer hunters who need gear they can trust to deliver season after season.
Specifications
| Magnification | 5x |
|---|---|
| Objective Lens Diameter | 21 mm |
| Eye Relief | 13mm |
| Range Reflective (yards) | Up to 850 yds. |
| Range Tree (yards) | Up to 500 yds. |
| Range Deer (yards) | Up to 350 yds. |
| Min Range | 6 yds. |
| Accuracy | .5 yds @ 100 yds. |
| Length | 3.8″ |
| Height | 3.1″ |
| Width | 1.4″ |
| Weight | 4.6 oz. |
| Max Angle Reading | ± 89° |
Features
Target Modes
- Normal Mode: The standard mode providing the target’s range with the strongest range result. Recommended for most situations.
- First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
- Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
Ranging Modes
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS)
Displays the actual line of sight range.
Scan Feature
Displays continuous distance readings while panning across a landscape.
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Soft-Touch Exterior
Improves grip, even in wet conditions or when wearing gloves.
Black LCD Display
Easy to read in bright sunlight.
Ranging Format
Range in yards or meters.
Waterproof
Designed to withstand harsh weather conditions.
Shockproof
Designed to withstand the highest levels of impact.

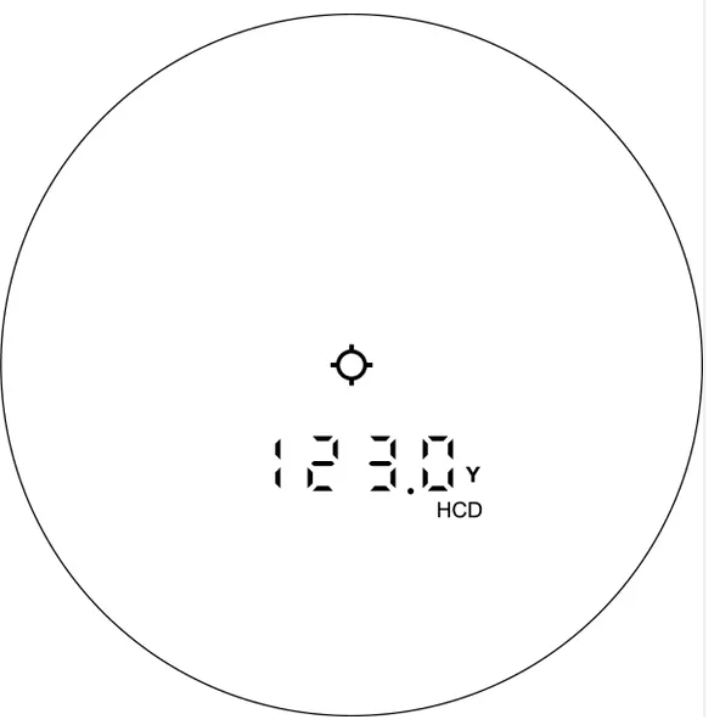

Reticle
HCD CORRECTED SHOOT-TO RANGE
The Triumph™ HD 850 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
What’s In The Box
Triumph™ HD 850

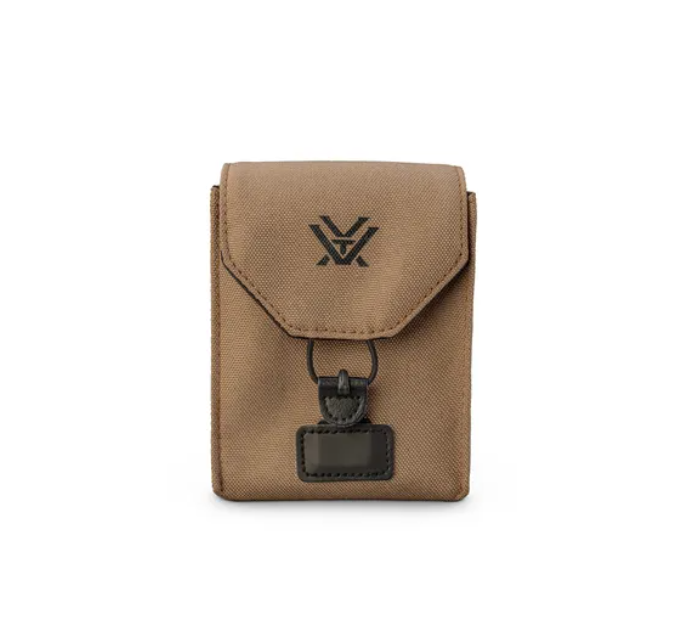

- Soft Carry Case
- Wrist Lanyard
- Lens Cloth
- CR2 Battery
