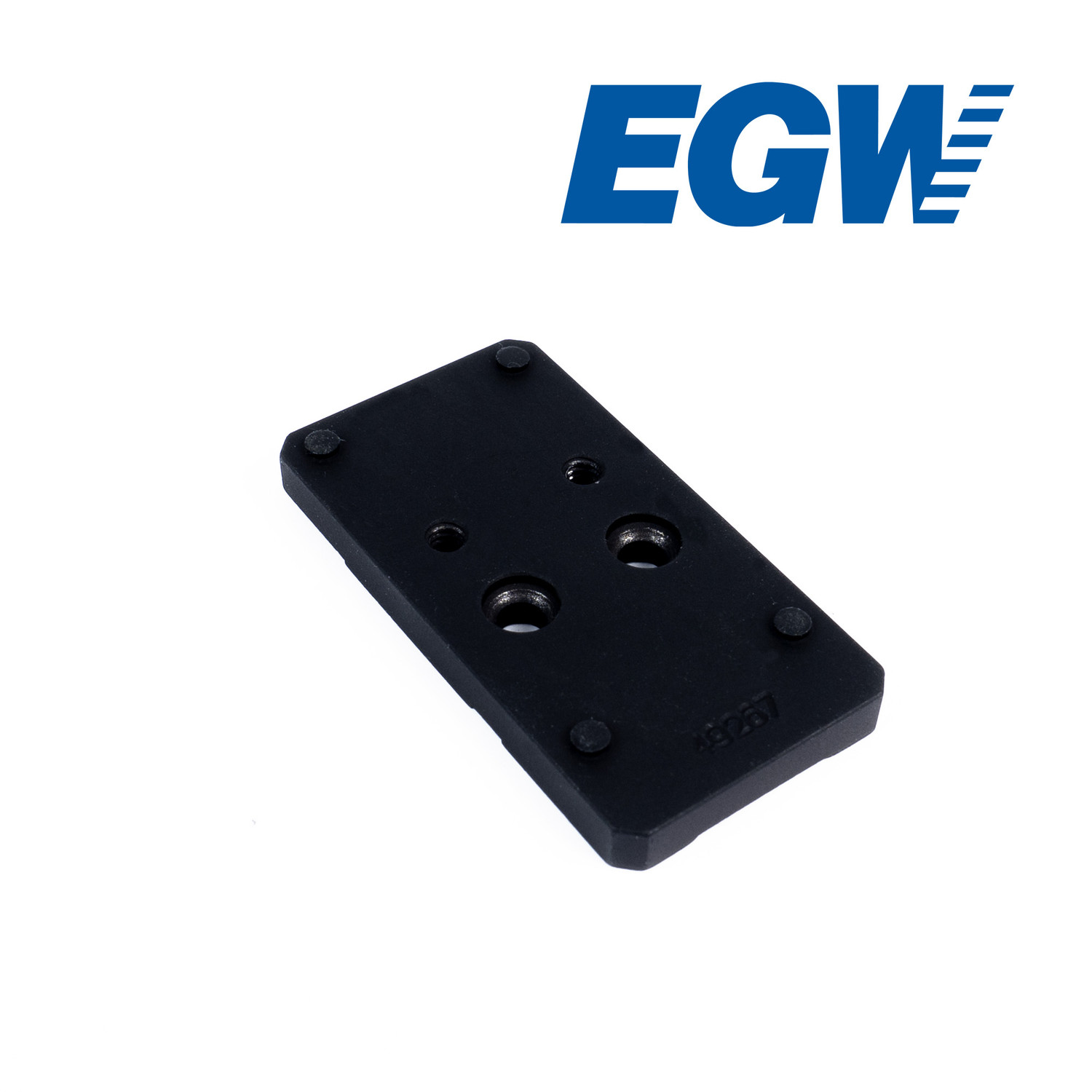

EGW Handgun Pistol Mount for Vortex Viper, Venom, Burris Fastfire and Doctor Red Dot Sights

Simply remove the rear sight on your pistol and replace it with the EGW mount in order to mount your Vortex Viper/Venom, Burris FastFire, Crimson Trace CTS-1200, CTS-1300, US Optics DRS 2.0 and 2.0 Enhanced, or Doctor red-dot sight.

No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included.

• Made in the USA
• 7075 T6 Aircraft grade aluminium
• Black models are Type 3 hard coat anodized
• Mounting screws included

Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

Installation: EGW recommends 15 inch lbs of torque and a drip of blue loctite.

Rear sight pusher tool recommended for installation.

Notes:

Sig M17 M18 P320 49201: This mount fits: Sig M17 (with Romeo1 PRO cut), Sig M18 (with Romeo1 PRO cut), Sig P320 X-Five Legion (with Romeo1 PRO cut), Sig P320 X-Carry Optics Ready (with Romeo1 PRO cut).

This mount does not fit: Sig P320 RX, Sig P320 X-Five (with Romeo1 cut), Sig M17 Military Surplus

CZ TS 2 49271: This mount fits: CZ TS 2 Models, CZ 75 Tactical Sports, CZ TS Czeckmate, CZ Ts Orange.
This mount does not fit ANY/ALL CZ slides that are already cut for optics.

Sig P322 Optics Ready 49273: This mount fits Sig Sauer P322 Optics Ready. This adapter plates for the Sig Sauer P322 Optics Ready pistols are meant to be installed in place of the factory mounting plate. Simply remove the sight plate on your gun and replace it with our mount in order to mount your red-dot sight.

Colt Anaconda 2020 and Newer 49276: This mount fits Colt Anaconda (fits 2020 and newer models), Colt Python (fits 2020 and newer models if the second screw hole is drilled and tapped in the top strap), Torque 6-40 x 3/8 mounting screw to 20 in/lbs, Torque 4-48 x 3/8 mounting screw to 10 in/lbs
Torque 6-32 red dot mounting screws to 15 in/lbs

Some newer Pythons are only drilled and tapped for one screw on the top strap, if your gun only has one hole on the top strap, this mount WILL NOT WORK.

This is for Colt models with the Elliason style adjustable rear sight.

Tristar Shotgun 49277: This mount fits Tristar Shotgun (factory drilled and tapped).

Ruger Max-9 49278: This mount fits Ruger Max-9. This adapter plates for the Ruger Max-9 Optics Ready pistols are meant to be installed in place of the factory mounting plate. Simply remove the sight plate on your gun and replace it with our mount in order to mount your red-dot sight.

Beretta 92 49279: This mount fits: Beretta 92 FS, Beretta 92 G, Beretta 92 FS Fusion, Beretta 92 Fusion Black, Beretta 92 Fusion Blu, Beretta 92 FS Inox, Beretta 92 A1, Beretta 92 FS Brigadier, Beretta 92 FS Brigadier Inox, Beretta 92 G Elite, Beretta 92 Compact, Beretta 92 Compact w/ Rail, Beretta 92 Compact with Rail Inox, Beretta 92 Vertec Inox, Beretta 92G-SD, Beretta 92X Centurion, Beretta 92X Compact, Beretta 92X Compact w/ Rail, Beretta 92X Full Size, Beretta 98 A1, Beretta 98 FS, Beretta 90 Series Inox, Beretta M9, Beretta M9 Exclusive, Beretta M9A1, Beretta M9A3, Beretta M9A3 Black, Beretta 98 FS Inox, Beretta m9 22lr.

This mount does not fit (including but not limited to): Beretta 92 Optics Ready Models, Beretta 92 FS Centennial, Beretta 92 Performance, Beretta 92 Performance Defensive, Beretta 92 RDO Compact Y22, Beretta M9 A4 Centurion Y22, Taurus 92.

Ruger Security 9 and 380 49280: This mount fits Ruger Security 9 and Ruger Security 380.

HK USP Compact 49281: This mount fits HK USP Compact.

This mount does not fit: HK USP Tactical 9mm, HK USP Tactical .45 ACP, HK USP 9mm, HK USP 40 S&W, HK USP .45 ACP, HK USP Expert, HK USP Elite, HK VP9, HK VP40, HK P30, HK P30L, HK P30SK, HK 45, HK 45C.

SIG P365X /XL Optics Ready 49282: The EGW red dot sight mount adapter plates for the Sig Sauer P365 Optics Ready pistols are meant to be installed in place of the factory mounting plate. This mount fits: Sig Sauer P365X Optics Ready and Sig Sauer P365XL Optics Ready (Will only fit models that have rear sight incorporated in cover plate)

This mount does not fit: Sig Sauer P365 SAS, Sig Sauer P365XL With Stand Alone Rear Sight, Sig Sauer P365 XMACRO.

Springfield Hellcat Optics Ready 49283: The EGW red dot sight mount adapter plates for the Springfield Hellcat Optics Ready pistols are meant to be installed in place of the factory mounting plate. This mount fits: Springfield Hellcat Optics Ready, Springfield Hellcat Pro Optics Ready

Zev Cut Slide 49284: The EGW red dot sight mount adapter plates for the Zev Slides are meant to be installed directly on the slide. Simply remove the sight plate on your gun (if applicable) and replace it with our mount.

This mount fits: Zev slides factory cut for the RMR platform with the threaded posts. Will work with Wuelf slides. If your gun has a cut out for the optics plate, this plate will work with your application.

Savage / Stevens 301 49286: This mount fits: Factory Drilled and Tapped Stevens 301 12 and 20 gauge models only. This mount measures .350″ from the top of the barrel to the top of the mount.

This mount does not fit: Stevens 301 .410 Models

HK VP9 / VP9L Optics Ready 49287: This mount fits HK VP9 Optics Ready Models, VP9 Optics Ready, VP9L Optics Ready, VP9 Tactical Optics Ready.
If your gun has a cut out for the optics plate, this plate will work with your application.
(This mount is comparable to the HK VP9 Optics Ready #5 Plate)

Walther Q5 Match 49288: This mount fits: Walther Q4 Steel Frame OR, Q4 Tac M1, Q4 Tac M2, Q5 Match M1, Match M2, Match Steel Frame Standard, Match Steel Frame Professional, Q5 Match Steel Frame Standard 10R
This mount does not fit: Walther Q5 Match SF Arabesque, Q5 Match SF Patriot, Q5 Match SF Black Diamond, Q5 Match SF Match Black Tie

Ruger SR9/SR40 / SR45 49290: This mount fits: Ruger SR9, Ruger SR9C, Ruger SR40, Ruger SR40C, Ruger SR45

This mount does not fit: Ruger SR9E, Ruger SR22

Taurus G2, G3, PT111 G2, PT140 G2, PT709, PT740 and TX22 49291: This mount fits: Taurus G2S, Taurus G2C, Taurus G3 (old style rear sight, not new Glock style), Taurus PT111 G2, Taurus PT140 G2, Taurus PT709, Taurus PT740, Taurus TX22.

S&W M&P Shield EZ 49292: This mount fits: S&W M&P Shield EZ .380 ACP, S&W M&P Shield EZ 9mm
This mount does not fit: S&W M&P, S&W M&P 2.0, S&W M&P 22

We do not include the screw that fastens the adapter plate down to the slide. You must reuse the screw that came out of your gun. The screw is installed from the bottom of our slide and threads in to our adapter plate.

Walther PPQ 22LR 49293: This mount fits the Walther PPQ .22LR.

This mount does not fit: Walther PPQ 22, Walther PPQ Q4 Tac, Walther Q5 Match.

The PPQ sight has a hole drilled in the bottom of the dovetail to accomodate the plunger on some models of the Walthers. This plunger may also be removed from the slide if desired.

Walther PPQ 49295: This mount fits the following Walther models: PPQ Classic (M1), PPQ M2 (All Models), PPQ 45, PPQ 45 SD, PPQ Sub Compact, P99 (All Models), PPX (All Models), Creed, Creed 10 Round, PPS (All Models), PPS M2 (All Models).

This mount does not fit: Walther PPQ 22, PPQ Q4 Tac, Q5 Match

The PPQ sight has a hole drilled in the bottom of the dovetail to accommodate the plunger on some models of the Walthers. This plunger may also be removed from the slide if desired.

S&W 1911 ADJ SIGHTS 49296: Will fit S&W 1911 with Adjustable Rear Sights, will not fit models with fixed rear sights.

DESERT EAGLE (POST 2017) 49297: Please take note of the Pre 2017 and Post 2017 differences before placing your order: Pre 2017 rear shelf behind the dovetail is .187″. Post 2017 rear shelf behind the dovetail is .120″

CZ 75 SP-01 Shadow 49298: This mount fits: CZ 75 Shadow, CZ 75 SP01 Shadow, CZ Shadow 2

Sig P210A 49299: This mount fits: Sig P210A Target

This mount for the P210 is made specifically for the U.S. made P210s. The front of the mount will need to be cross drilled to fit each individual gun. The pin from the factory rear sight may be reused as well.

The hole dimension for the cross hole is 2.04mm. There are 2.04mm drill bits available from sites like Grainger, but you may also be able to use a 5/64″ bit to mark the hole on the mount and a 3/32″ bit to drill the hole. Sig uses a 2mm coiled spring pin to hold the original sight in place.

LPA LOW MOUNT 49301: This mount fits: Baby Desert Eagle (Post 2006),
EAA Witness Elite Match.

DESERT EAGLE (PRE 2017) 49303: Please take note of the Pre 2017 and Post 2017 differences before placing your order: Pre 2017 rear shelf behind the dovetail is .187″. Post 2017 rear shelf behind the dovetail is .120″

FN, FNS, FNX 49304: This mount does not fit the FN Five-seveN (5.7)

H&K USP 49305: DOES NOT FIT THE USP COMPACT. The USP Compact rear sight cut depth is .200″, The standard USP (for this rear sight cut) rear sight cut depth is .160″

This mount fits: USP Tactical 9mm, USP Tactical .45 ACP, USP 9mm, USP 40 S&W, USP .45 ACP.

Does NOT Fit: USP Expert, USP Elite.

EAA SS, TANFOGLIO WITNESS 49306: This mount fits: EAA / Tanfoglio Witness with adjustable rear sight (windage AND elevation).

This mount does not fit: EAA / Tanfoglio Witness with fixed rear sight

S&W M&P 49308: This mount will fit: Smith & Wesson M&P Full Size, 2.0 Full Size, 22 Full Size, Compact, 2.0 Compact, SD9VE, SD40VE.

This mount does not fit: Smith & Wesson M&P Shield, Shield EZ .380, SW9VE, SW40VE, C.O.R.E Series, M&P .22 Compact.

Smith and Wesson’s rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering. Our return policy does allow for returns of unused and undamaged parts. These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.

S&W 52 49309: This mount fits: Smith & Wesson Model 52

This mount does not fit: Smith & Wesson Model 41

GI 1911 49310: This mount will fit: 1911s with a G.I. style rear sight cut, and the following Iver Johnson firearms 1911A1, 1911A1 9, Falcon 45, Thrasher 45, Thrasher 9, 1911A1 Chrome 38W, 1911A1 Chrome 38P, 1911A1 CHRW45, 1911A1 CHR45P, 1911A1 CHR45WP, 1911A1 Zombie, 1911A1 Copperhead, 1911A1 Water Moccasin, 1911A1 Boa, 1911A1 Muddy Girl 9mm, 1911A1 Digital Navy, 1911A1 Digital Snow 45acp.

NOVAK 49311: This mount will fit pistols with a Novak Cut rear sight mount such as STI fixed rear sights, Springfield Armoury 1911, GSG 1911, Rock Island, Iver Johnson, and Wilson Combat. CHECK YOUR PISTOL HAS A NOVAK CUT SIGHT BEFORE ORDERING.

Minor modification to the sight base may be necessary for Rock Islands and GSG 1911 .22s.

BOMAR 49312: This mount will fit pistols with a Bomar Cut rear sight mount such as the STI Edge (Bomar Cut Version), Les Baer 1911 (adjustable rear sights), Colt Gold Cup Trophy with Bomar Rear Sight Cut, Colt Gold Cup National Match .45acp, Colt Gold Cup National Match 9mm, Springfield TRP Operator.  CHECK YOUR PISTOL HAS A BOMAR CUT SIGHT BEFORE ORDERING.

GLOCK 49313: This mount fits all generation Glocks: 17, 19, 20, 21, 22, 23, 24, 26, 27, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 41, 42, 43, 46, as well as the Canik TP9SF, Bersa BP9CC, Tactical Solutions .22lr Conversion, Advantage Arms .22lr Conversion

Does not fit the following Glock MOS models: Glock 17 Gen 4 MOS, Glock 19 Gen 4 MOS, Glock 34 Gen 4 MOS, Glock 40 Gen 4 MOS, Glock 41 Gen 4 MOS, Glock 35 Gen 4 MOS, Glock 34 Gen 5 MOS.

KIMBER and RUGER 1911 49316: This mount fits: Kimber 1911 (with  adjustable rear sights for windage and elevation), Ruger SR1911 (with adjustable rear sights for windage and elevation). Will not fit models with fixed rear sights.

LPA 49317: This mount will fit pistols with an LPA Cut rear sight mount such as Sig Sauer 1911, STI adjustable rear sights, Springfield Armoury, Rock Island, Iver Johnson, CHECK YOUR PISTOL HAS A LPA CUT SIGHT BEFORE ORDERING.

Will Not Fit: Para Elite LS Hunter, Remington R1 10mm Hunter

SIG SAUER 49318: THIS MOUNT DOES NOT WORK WITH ANY SIG OPTICS READY PISTOLS (P320 X-CARRY ETC.)

This mount fits (including but not limited to): Sig #8 Sights, P220, P224, P225, P225-A1, P226, P227, P228, P229, P238, P239, P245, P320, P938, SP2022, M11-A1, MK25, Bersa Thunder UC Series (9/40/45), Bersa Thunder HC Series (9/40/45), FN 509.

This mount does not fit: Sig 1911s, Any Optics Ready Sigs i.e. P226 Legion RX, P229 RX, P320 X-Carry etc., P210 Target, P365, FN 509 Tactical.

S&W REVOLVERS 49319: This mount will fit K, L, N, and X frame Smith & Wesson Revolvers.

If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not this mount will not work without you having the gun drilled and tapped.

RUGER REVOLVER 49320: This mount fits the following Ruger Revolvers: Blackhawk, Redhawk, GP100 (with adjustable rear sights), GP100 Match Champion.

This mount does not fit: Ruger Flattop Revolvers

RUGER AUTO 49321: This mount fits the following Ruger pistols: Ruger MK I, MK II, MK III, MK IV, P85, P89, P90-95, P97, 22/45

COLT GOLD CUP 49322: This mount fits the following Colt models: Gold Cup,
Trooper Mark 3, Python, Anaconda.

This is for Colt models with the Elliason style adjustable rear sight. The elevation screw from the original rear sight is re-used in the center hole on this mount.

SPRINGFIELD XD 49323: This mount fits the following Springfield XD models: XD MOD.2 – 3″ SUB-COMPACT MODEL, XD MOD.2 – 3.3″ SUB-COMPACT MODEL, XD MOD.2 – 4″ SERVICE MODEL, XD MOD.2 – 4″ SERVICE MODEL THREADED BARREL, XD MOD.2 – 5″ TACTICAL MODEL, XD 3″ SUB-COMPACT MODEL, XD 4″ SERVICE MODEL, XD(M) 3.8″ COMPACT MODEL, XD(M) 3.8″ MODEL, XD(M) 4.5″ MODEL, XD(M) 4.5″ THREADED BARREL MODEL, XD(M) 4.5″ OSP FULL SIZE, XD-S 3.3″ MODEL, XD-E 3.3″ SINGLE STACK

It does not fit: XD(M) 5.25″ COMPETITION SERIES MODEL

Universal 0.468″ RAD 49324: This mount has a bottom radius of .468″. There should be a slight gap at the top of the radius between the receiver and the mount when mounted. The two spreads on this mount measure .500″-.505″ and .8625″. This should fit barrel/receiver diameters from .936″-1.350″.

UNIVERSAL 0.670 RAD 49325: This mount has a bottom radius of .670″. There should be a slight gap at the top of the radius between the receiver and the mount when mounted.

Note that this mount is drilled for and only includes #6 screws. If your application requires #8 screws then you will need to source these screws yourself as well as have this mount drilled to suit #8 size screws.

The two spreads on this mount measure .500″-.505″ and .8625″ which should fit the receiver ring on the following guns:

Shotgun: Mossberg 500, 590, 835, 930, 935 Pre ’97, Mossberg 500, 590, 835, 930, 935 Late (after ’97) (Requires 8-40 and Longer Screws), Benelli Auto / Super Black Eagle / Vinchi, M2 (Will Work in the Front Set Only, 8-40 Screws), Benelli Supernova (Will Work in the Front Set Only, 8-40 AND Longer Screws), Browning A-Bolt 12 Gauge, Savage 210, Savage 212, Savage 220, Stoeger M3000 / Stoeger M3500 (Will Work in the Front Set Only, 8-40 Screws), Winchester 1300, Winchester SXP

Rifle: Remington 700, 722, 40x, Remington 783, Remington 710/770, Remington xp 100, Remington 4, 6, 7400, 7615 (Front Set Only, 8-40 Screws), Savage Arms Centerfire Models, Winchester 70.

CZ 75 49326: This mount fits the following CZ models: 75, 75 SP-01, 75 SP-01 Phantom, 85, P-01, PCR.

This mount does not fit the CZ P-07 or CZ P-09

(Does NOT fit any of the SP-01 Shadow variants)

S&W M&P 22 COMPACT 49327: Using this mount in combination with a red dot sight will increase the weight on the slide of your firearm. This may lead to cycling issues especially in .22s.

SIG 220 10mm HUNTER 49328: This mount fits: Sig P220 10mm Hunter, Sig P220 Super Match SAO, Sig P220 Match Elite (with adjustable sights).

S&W 1911 FIXED SIGHTS 49330: Will fit S&W 1911 with Fixed Rear Sights, will not fit models with adjustable rear sights.

MARLIN 1894 49331: This mount is comes with both #6 and #8 screws and is drilled to suit both screw sizes.

This mount fits: Marlin 1894, 1895, Henry H009, H010, H014, H006, H012 Golden Boy, Camp Carbine 9mm, Camp Carbine 45, Ruger PC Carbine.



Available for the following:

#49201: Sig P320 M17

#49271: CZ TS2

#49273: Sig P322 Optics Ready

#49274: Kimber Micro 9

#49275 Sig Mosquito and GSG Firefly

#49276: Colt Anaconda 2020 and newer

#49277: Tristar Shotgun

#49278: Ruger Max 9

#49279: Beretta 92

#49280: Ruger Security 9

#49281: HK USP Compact

#49282: Sig P365 Optics Ready

#49283: Springfield Hellcat Optics Ready

#49284: Zev Cut Slide

#49285: Taurus PT1911

#49286: Savage 301 12 and 20 Gauge

#49287: HK VP9 / VP9L Optics Ready

#49288: Walther Q5 Match

#49290: Ruger SR9/ SR40 / SR45

#49291: Taurus G2, G3, PT111 G2, PT140 G2, PT709, PT740 and TX22

#49292: S&W M&P Shield EZ

#49293: Walther PPQ 22LR

#49295: Walther PPQ M2

#49296: S&W 1911 with Adjustable Rear Sights

#49297: Desert Eagle (Post 2017)

#49298: CZ 75 SP-01 Shadow and Shadow 2

#49299: Sig P210A Target

#49301: LPA Low Mount Cut Rear Sight

#49302: Colt 1911/22 Rail Gun with the Walther Slide

#49303: Desert Eagle (Pre 2017)

#49304: FN, FNS, FNX

#49305: H&K USP

#49306: EAA Super Sight, Tanfoglio Witness with Adjustable Rear Sight

#49307: H&K VP9, VP9SK, VP40, P30, P30L, P30SK, HK45, HK45C

#49308: S&W M&P

#49309: S&W 52

#49310: 1911 with GI Style Cut Rear Sight

#49311: Novak Cut Rear Sight

#49312: Bomar Cut Rear Sight

#49313: Glock

#49315: Kimber 1911 with Fixed Rear Sights

#49316: Kimber 1911 and Ruger SR1911 with Adjustable Rear Sights

#49317: LPA Cut Rear Sight

#49318: Sig Sauer P220-229, 320

#49319: S&W Revolvers, K, L, N and X Frames

#49320: Ruger Revolvers

#49321: Ruger Auto (Mk 1, Mk 2, Mk 3, Mk 4, P85, P89, P90-95, P97, 22/45)

#49322: Colt Gold Cup, Python, Anaconda

#49323: Springfield XD

#49324: Universal Fit for 0.468″ Radius for Rifles and Shotguns

#49325: Universal Fit for 0.670″ Radius for Rifles and Shotguns

#49326: CZ 75, 75 SP-01, SP-01 Phantom, 85, P01, and PCR (Does NOT fit SP-01 Shadow variants)

#49327: S&W M&P 22 Compact

#49328: Sig Sauer 220 10mm Hunter

#49329: CZ P-10 C

#49330: S&W 1911 with Fixed Rear Sights

#49331: Marlin 1894, 1895, Henry H009, H010, Ruger PC Carb
