U.S. Optics has been building custom riflescopes and optics for 28 years. The models that make up the commercial product line were chosen because of an overwhelmingly similar ordering pattern for specific features and magnification ranges. All U.S. Optics products are hand assembled by skilled technicians before undergoing rigorous testing during the quality assurance process.
The USO TS-20X riflescope is built to meet the rigorous demands of long-range hunters and precision competitors.Â
Whether you are gearing up your production class PRS Rifle or custom building your precision hunting rig, the TS-20X will help you maximize your rifle’s performance capabilities.
It’s wide range magnification and parallax adjustment allows you to dial down to 2.5 power for up close shots, and dial up to 20 power when you need to reach out past 1,000 yds.
It’s top tier optical system, rugged 34mm aluminum body, and ample amounts of elevation and windage travel will ensure that you are more than ready for your next endeavour.
First Focal Plane scope with an illuminated reticle. Includes scope caps.
NOTE: Scope mount in photo NOT INCLUDED
Â
Description
Magnification: 2.5 – 20x
Diopter: +2/-3
Exit Pupil Diameter: 2.5mm @ 20X
20mm @ 2.5X
Parallax Adjustment: 10 yds – Infinity
20X Field of View @ 100 meters = 2.2 meters
12X Field of View @ 100 meters = 3.8 meters
3X Field of View @ 100 meters = 11.3 meters
2.5X Field of View @ 100 meters = 14 meters
Eye Relief: 2-3 inches
Obj. Lens Housing Diameter: 50mm Clear/60mm OD
Tube Diameter: 34mm
Overall Length: 14.64 in
Ocular Lens Diameter: 34mm
Weight: 0.815 kg
Reticle Illumination: Red
Battery: CR 2032
Finish Color: Matte Black
Elevation Knob:Â 1/10 MilÂ
Elevation Travel: 32 Mil total travel
Windage Knob: 1/10 MilÂ
Windage Adjustment Range: 30 Mil total travel (15L/15R)

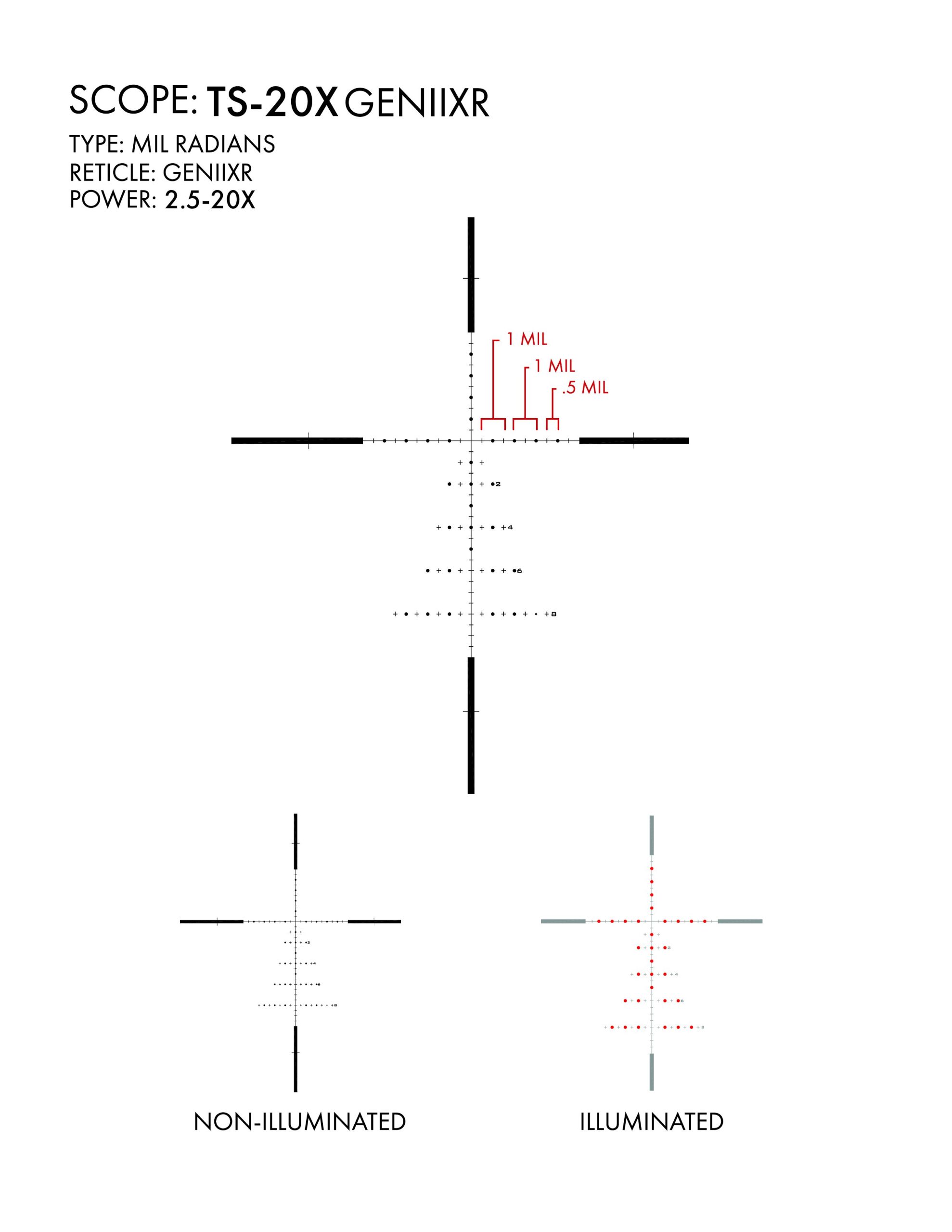

Reticle: First Focal Plane GENIIXR
