With the WideRange Plex™ reticle, Crossfire® HD helps you pick out fine details for hair-splitting accuracy at long range. Designed for open terrain and extended-range shooting, its thinner crosshairs reduce obstruction, giving you the clarity and focus to lock in on small, distant targets.
Specifications
| Magnification | 4-12x |
|---|---|
| Objective Lens Diameter | 44 mm |
| Focal Plane | Second Focal Plane |
| Reticle | WideRange Plex™ (MOA) |
| Eye Relief | 3.8″ |
| Field of View | 26.9′ – 8.6′ @ 100 yds. |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | 15 yds. – ∞ |
| Length | 13.4″ |
| Weight | 20.7 oz. |
Features
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Fast-Focus Eyepiece | Allows quick and easy reticle focusing. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |

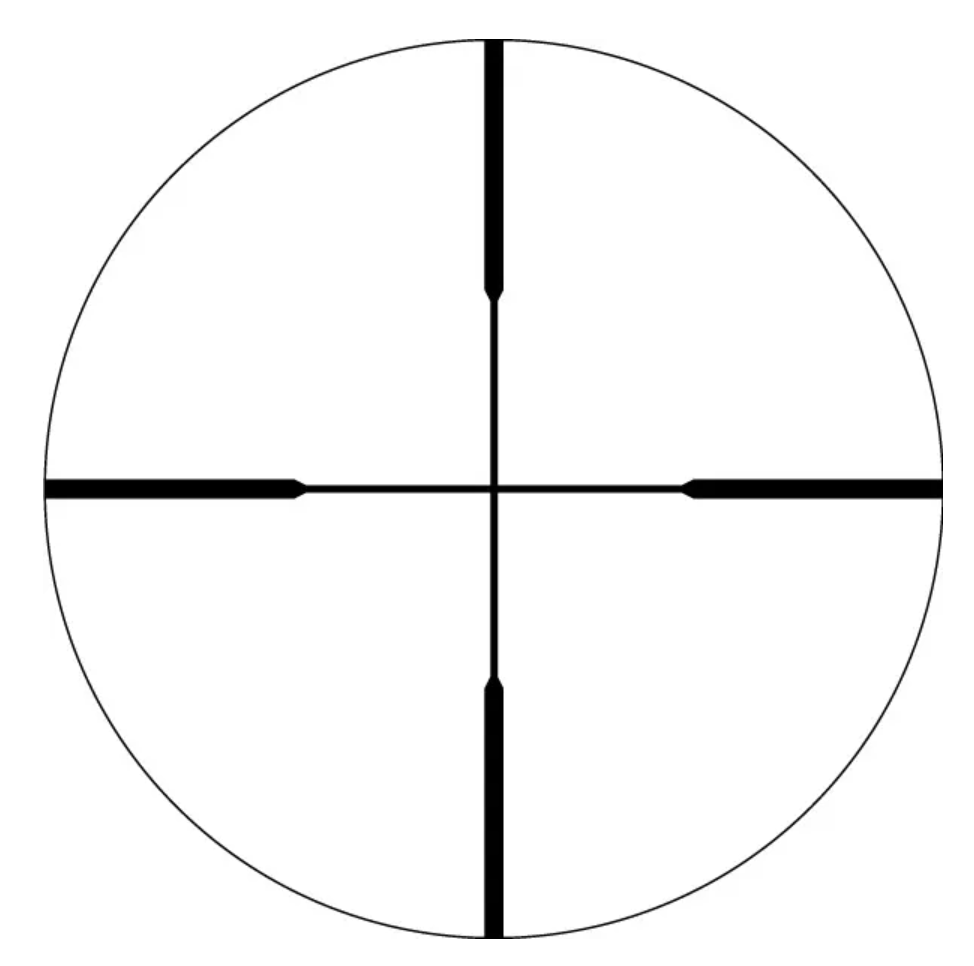

Reticle
WideRange Plex™ (MOA)
Designed for open terrain and extended-range shooting, its thinner crosshairs reduce obstruction, giving you the clarity and focus to lock in on small, distant targets.
Included in the Box
- Neoprene Cover
- 3″ Sunshade
- Turret Tool
- Lens Cloth
