At nearly 1/4 pound lighter than the original Razor HD Gen II 1-6×24, the “E” (Enhanced) model allows for quicker transitions between targets and less arm fatigue during long days on the range. Perfect for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium range tactical applications. Optically, it delivers the highest level of clarity, resolution, color accuracy, light transmission and edge-to-edge sharpness. True 1x on the low end is complimented by an ultra-forgiving eyebox with generous eye relief for a heads-up-display-like sight picture and a daylight bright illuminated center dot in the reticle for extremely fast target acquisition in close quarters. Ultra-sleek and built like a tank on a 30mm, aircraft-grade aluminum tube, the Razor HD Gen II-E 1-6×24 features ultra-low profile, capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer (20 MRAD) of adjustment in a single turn, ensuring ample travel.
SPECIFICATION
| OBJECTIVE LENS DIAMETER | 24mm |
|---|---|
| MAGNIFICATION | Zoom: 1X to 6X |
| TUBE DIAMETER | 30mm |
| FIELD OF VIEW @ 100 YARDS | 115.2 ft – 20.5 ft |
| EYE RELIEF | 4″ |
| RETICLE FOCAL PLANE | 2nd Focal Plane |
| ELEVATION CLICK VALUE | .2 MRAD |
| MAX ELEVATION ADJUSTMENT | 43 MRAD |
| MAX WINDAGE ADJUSTMENT | 43 MRAD |
| LENGTH | 10.1″ |
| WEIGHT | 21.5 oz |
| BATTERY TYPE | CR2032 |
| WEATHER RESISTANCE | Water/Fog Proof |
| ILLUMINATED RETICLE | Yes |
- APO System Index-matched lenses correct color across the entire visual spectrum.
- Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
- HD Lens Elements Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
- XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
- Plasma Tech Cutting edge coating application process provides unparalleled coating durability and performance
- Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Illuminated Center Dot Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.
- Locking Illumination Locks illumination at preferred setting.
CONSTRUCTION FEATURES
- Tube Size 30 mm diameter provides maximized internal adjustment and strength.
- Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof Rugged construction withstands recoil and impact.
- Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.
- ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Large Diameter Turrets Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.
INTERNAL MECHANISM DESIGN FEATURES
CONVENIENCE FEATURES

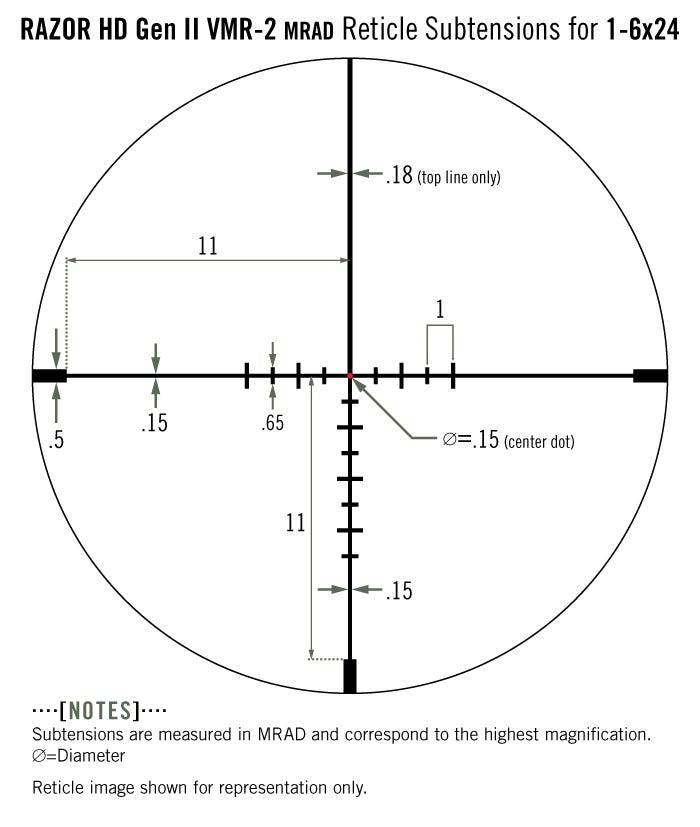

VMR-2 (MRAD)
Simple, intuitive and fast. The Vortex-exclusive VMR-2 BDC reticle with illuminated center dot (designed with input from world-renowned competitive shooter, instructor and gunsmith Jerry Miculek) facilitates rapid, accurate, shooting at distances from point blank to 600 yards.
ATP is an authorised Australian dealer for Vortex. All Vortex products bought from ATP are covered by the Australian Vortex VIP Warranty
Our warranty is about you, not us. It’s about taking care of you after the sale.
The VIP stands for a Very Important Promise to you, our customers. We will repair or replace your Vortex product in the event it becomes damaged or defective—at no charge to you other then return post from you to us. It doesn’t matter how it happened, whose fault it was, or where you purchased it. You can count on the VIP Warranty for all riflescopes, red dots, rangefinders, binoculars, spotting scopes and monoculars.
- Unlimited Lifetime Warranty
- Fully transferable
- No warranty card to fill out
- No receipt needed to hang on to
If you ever have a problem, no matter the cause, we promise to take care of you.
The VIP warranty does not cover loss, misuse, theft or deliberate damage to the product.
