The Trace ED 1-10×24 LPVO combines advanced optical performance with robust engineering for those who need clarity and responsiveness across a wide magnification range. Featuring true 1x performance, ED glass, and a digitally controlled first focal plane reticle, it delivers premium functionality in a compact, streamlined platform—perfect for both wide-view observation and detailed long-range visual tasks.
- True 1–10x Magnification: Delivers both-eyes-open responsiveness at 1x and precision at 10x.
- ED Glass System: Superior resolution, light transmission, and colour accuracy throughout the zoom range.
- RMG-L Reticle (FFP): Optimised for variable power use—clean and simple at low power with detailed references at high magnification.
- Digital Illumination Control: Push-button brightness settings for quick, fine-tuned adjustments.
- Locking Elevation Turret + Zero Stop: Helps maintain consistent reference points in dynamic conditions.
- Capped Windage Turret: Protected and streamlined for rugged use.
- Removable Throw Lever: For fast magnification changes when every second counts.
- Premium Aluminium Flip Covers: Tool-free adjustment and enhanced lens protection included.
DETAILS
The Trace ED 1-10×24 LPVO redefines versatility in Low Power Variable Optics. Built for shooters who demand maximum performance across all ranges, this scope offers a rare combination: true 1x capability with expansive situational awareness, and precise, clear images at 10x magnification. The result? You get uncompromised control in close quarters and at extended distances.
Its RMG-L reticle—specifically designed for LPVO use—remains uncluttered at low power and reveals advanced holdover and windage stadia as you zoom in. The illuminated center crosshair provides a clean aiming point when light is low, and the digital illumination system makes on-the-fly adjustments effortless.
Crafted with ED lenses and housed in a 34mm 6061-T6 aluminum body, the Trace ED ensures outstanding clarity, durability, and reliability. Locking elevation turrets with zero stop, capped windage turrets, and premium aluminum flip caps round out this professional-grade optic.
Whether for competition, duty, or tactical applications, the Trace ED 1-10×24 delivers performance once reserved for scopes twice the price.
SPECIFICATIONS
| Model Number/SKU | TRED11024F-IR |
| Magnification Range | 1-10x |
| Objective Lens Diameter | 24mm |
| Maintube Diameter | 34mm |
| Parallax Adjustment | Fixed at 100 meters |
| Eye Relief | 3.7″ (94mm) |
| Field of View @ 100 Meters | 39.1m (1x) – 3.91m (10x) |
| Field of View @ 100 Yards | 117.3 ft – 11.73 ft |
| Turret Adjustments | 0.1 MRAD per click, 10 MRAD/revolution |
| Elevation Travel | 34 MRAD |
| Length | 10.35″ (263.1mm) |
| Weight | 25.64oz (727g) |
| Illumination | Yes – Digital control |
| Available Reticle | RMG-L (FFP) LPVO specific |
| Tube Material | 6061-T6 Aluminum |
| Lens Coating | Weathershield protection |
| Flip Covers | Precision aluminum included |

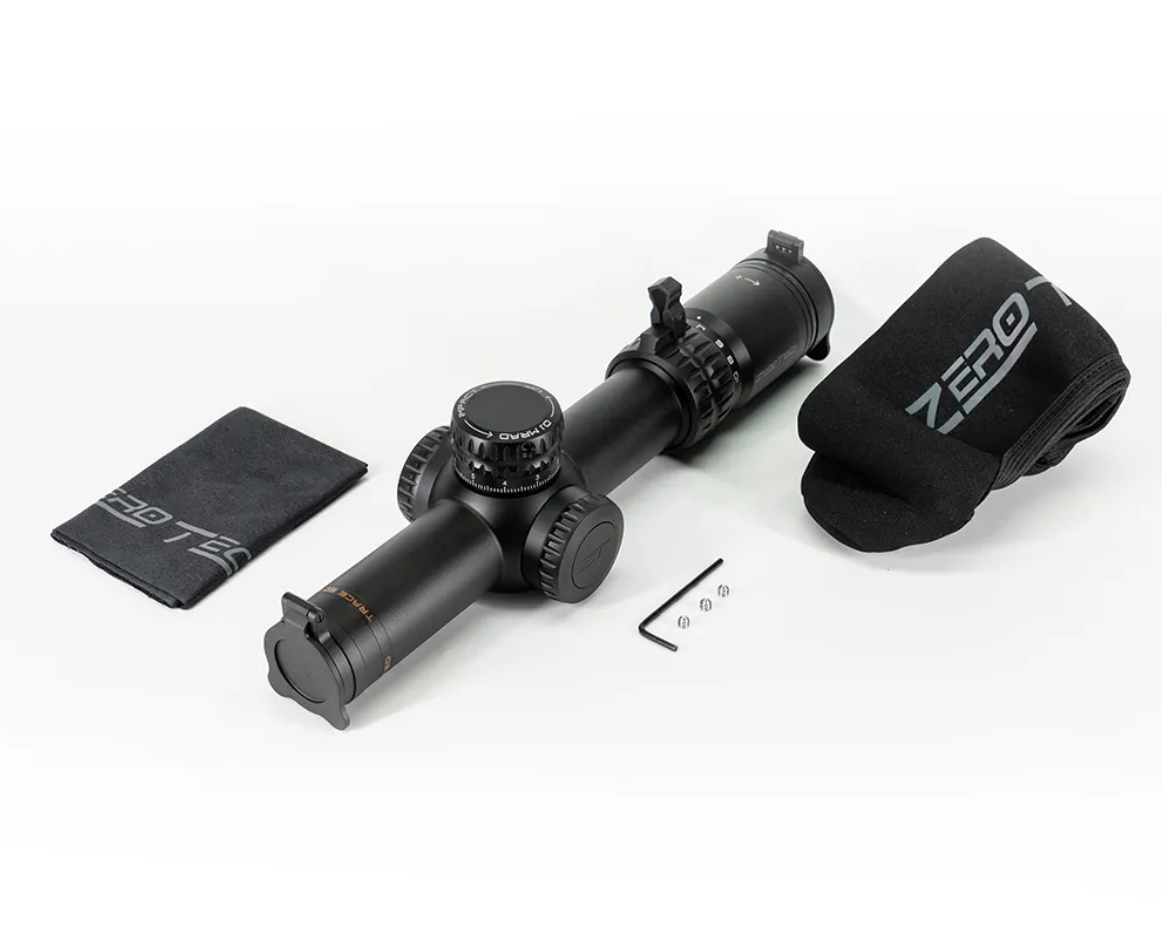

IN THE BOX
- Trace ED 1-10×24 LPVO Scope
- Aluminum Flip-Up Lens Covers
- Removable Throw Lever
- Neoprene Scope Cover
- Microfiber Cleaning Cloth
- Instruction ManualIn the Box
RMG-L Illuminated (LPVO Specific) Reticle
Based on our popular RMG design, the RMG-L reticle is optimised for Low Power Variable Optics while retaining many of the features and benefits for precision shooting applications. A central 2 MRAD segmented circle facilitates rapid and precise shot placement. At lower magnification, it simulates red dot performance under illumination, assisted by heavy bars located at 12, 3, 6 and 9 o’clock positions.
ATP is an authorised Australian dealer for Zerotech. All Zerotech products bought from ATP are covered by the Australian Zerotech AAA Lifetime Warranty.
ZeroTech products are covered for life, any owner, any problem, always covered.
At ZeroTech we are shooters, hunters and adventurers. We understand that the reality of your adventure can sometimes result in harsh conditions and damaged products, and that is why we will back you, and our product through life and through adventure.
- Unconditional lifetime replacement or repair*
- Regardless of the fault or the reason, ZeroTech products will be covered for the life of the product*
- No paperwork or proof of purchase is required
- The Warranty is fully transferable, if you sell the scope the warranty automatically goes with it
*AAA warranty does not cover any intentional loss or damage to ZeroTech products
