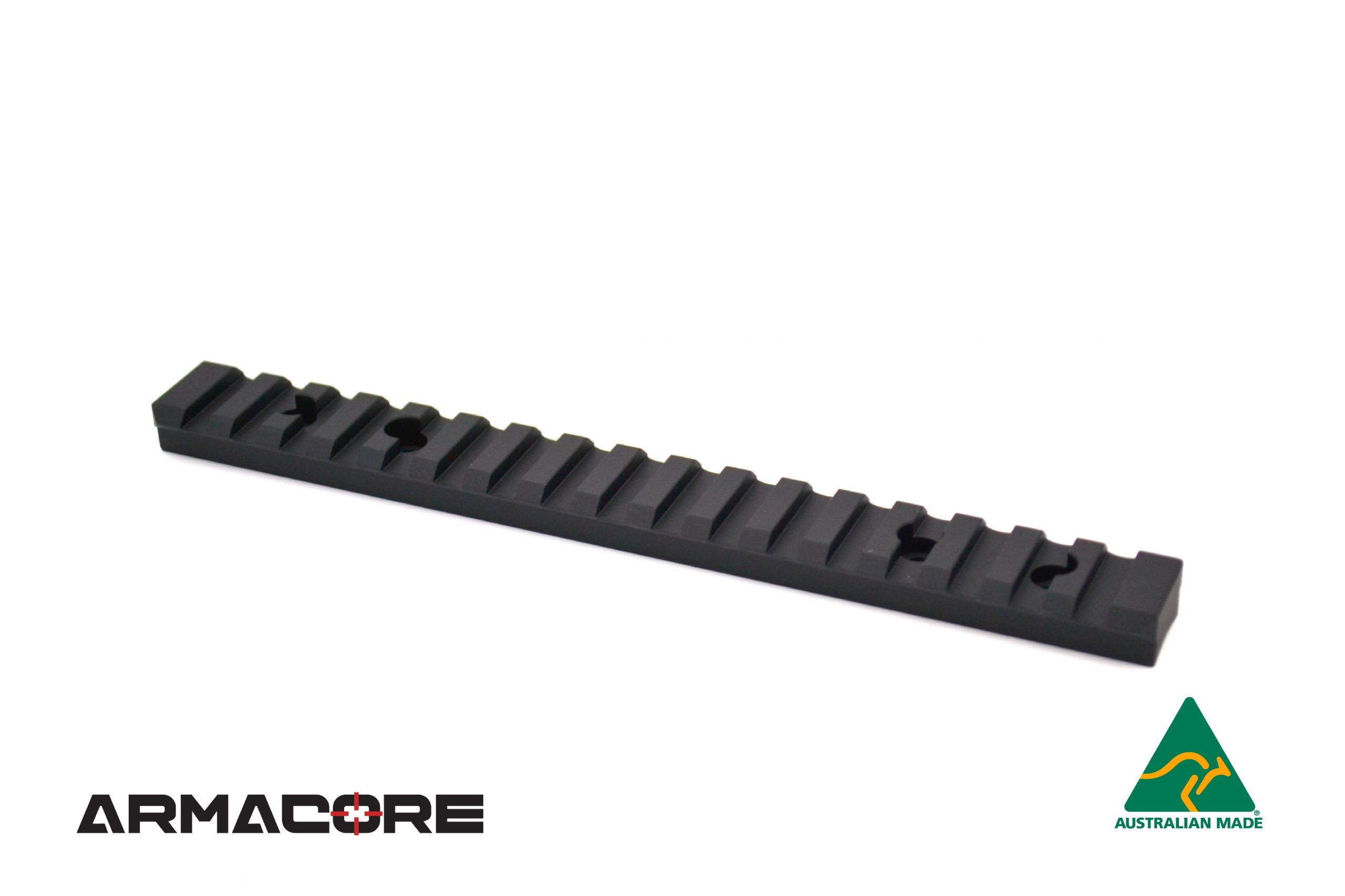

ATP Picatinny Scope Mount Rail Base, Lithgow LA102 Crossover, LA105 Woomera – Australian Made

(1 customer review)

$89.95 inc. GST

We only use quality gear at Australian Tactical Precision (ATP), this principal also extends to the products we manufacture.

Our Picatinny Scope Rails are made in Australia from a solid piece of Australian made 6061-T6 aircraft aluminium bar stock on USA made CNC machines, and are MIL-Spec Type III hard coat anodised for the ultimate in scratch resistance.

Cross slots are full width to ensure that your scope ring’s recoil lug are contacting the entire picatinny slot face for improved precision. Rail sections are contoured to avoid snagging.

They are made to MIL-STD-1913 and STANAG 4694 Specifications which hold tighter tolerances than rails made by other manufacturers, and come with the required fasteners to mount to your rifle.

Made to suit Lithgow LA102 Crossover and LA105 Woomera rifles. It can be used on left or right handed actions.

To install, use blue or purple loctite and tighten to 20 inch lbs. When installing, make sure the F engraved on the underside of the rail is on the forward (barrel) side of the action. The shortest screw (6mm) is to be used in the front most scope rail hole (closest to the barrel), use the three 8mm length screws for the other holes.

Note: These will only fit the centrefire models (LA102/LA015). Will not fit rimfire rifles.


  • Made from 6061-T651 aircraft aluminium for durability yet are light weight
  • MIL-STD-1913 and STANAG 4694 Picatinny specification
  • Compatible with both Picatinny and Weaver scope rings
  • MIL-Spec (MIL-A-8625) Type III Hard Coat anodised
  • Available in several slope configurations, 0/20/30/40 MOA
  • Includes mounting hardware
  • Made in Australia

Available variants:

  • Black – 0 MOA
  • Black – 20 MOA
  • Black – 30 MOA
  • Black – 40 MOA

All ATP products are covered under our lifetime warranty against manufacturing defects.

Weight 0.15 kg

Black, 0 MOA, Black, 20 MOA, Black, 30 MOA, Black, 40 MOA

1 review for ATP Picatinny Scope Mount Rail Base, Lithgow LA102 Crossover, LA105 Woomera – Australian Made

  1. Scott (verified owner)

    Well made and fitted straight on with no problems.
