The MDT SRS-XF Premier Folding Buttstock is designed to let you create a compact rifle system – for long hikes or small spaces – that locks up solid to maintain precision at any range.
PLEASE NOTE: FIREARMS FITTED WITH FOLDING STOCKS ARE PROHIBITED IN NSW, ACT and WA. ANY ORDERS PLACED FROM A NSW/ACT/WA ADDRESS FOR THIS PRODUCT WILL BE CANCELLED.
Note: For chassis and actions requiring correct folding order to avoid contact (specified in notes), the buttstock side must fold last and unfold first to ensure it clears the bolt handle.
When using the LSS Gen3 Short XTN interface, the buttstock will not fold over the bolt for any action. However it can be installed on the non-bolt side.
Please see the following link for the NON-FOLDING Versions:
Don’t forget to check out our ATP Limbsaver Recoil Pad and Adaptor for the MDT chassis/buttstocks at the following link, one of the best upgrades you can have for shooting comfort:
Buttstock accessories are also available here:
Ultimate Bag Rider:
Sling Stud mount:
3 Slot (40mm) M-LOK picatinny rail:

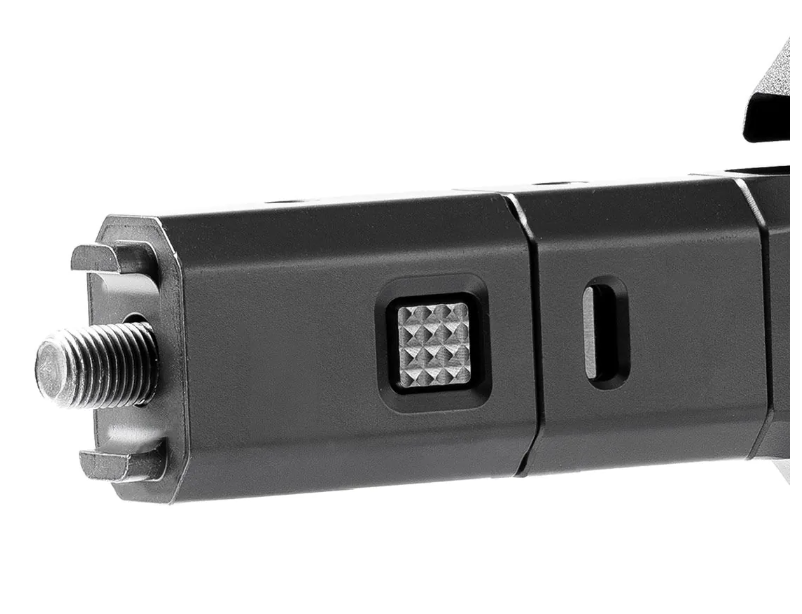

USE ON ANY XTN INTERFACE
Easily adapt any XTN Interface Chassis to a folding buttstock with a single screw.

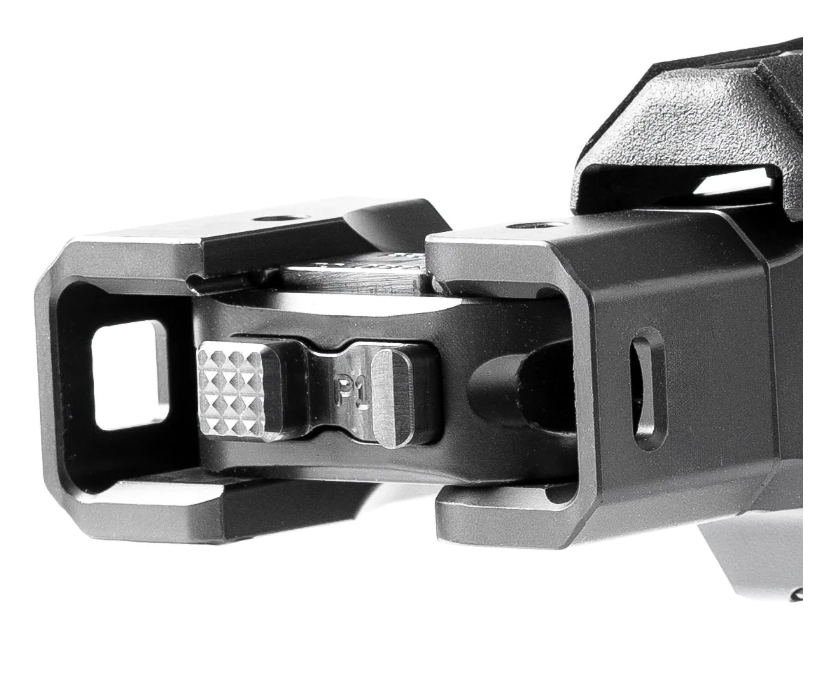

BOLT CLEARANCE
Large pocket allows it to fully clear and fold over most aftermarket and factory bolts without having to make adjustments.
FAST TARGET ACQUISITION
The SRS-XF Premier Folding Buttstock is compatible with our Buttstock Weight and LOP Spacer Weight to help you achieve that perfect balance and to stay on target.
THE PERFECT FIT
Compatible with Vertical Adjustment Buttpad and the ability to finely tune your length of pull provides a comfortable shooting experience tailored to you.
Low Profile Cheek Piece
New and improved adjustable cheek piece. Low-profile to help clear bolt handles.
RIDGID & ROBUST
Skeletonized body providing a robust structure.
Features
- QD SLING CUPS
- ADJUSTABLE LOP VIA SPACERS (X4 INCLUDED)
- M-LOK SLOT UNDER BUTTSTOCK
- ADJUSTABLE SLIM CHEEK RISER
- WEIGHT COMPATIBLE
- Reversible FOLDING DIRECTIONS
- COMPATIBLE WITH ADJUSTABLE BUTTPAD
- LOCK IN FOLDING POSITIONS
Compatibility
CHASSIS
- Any MDT chassis that uses the XTN interface
- NOT AR compatible
Compatibility Notes:
| ACC ELITE & ACC PREMIER GEN2 CHASSIS | Remington 700 SA | If using the MDT bolt handle, the buttstock side must fold last and unfold first to ensure it clears the bolt handle |
| LSS GEN3 CHASSIS | Remington 700 SA | If using the MDT bolt handle, the buttstock side must fold last and unfold first to ensure it clears the bolt handle |
| ACC ELITE & ACC PREMIER GEN2 CHASSIS | Kelbly’s Atlas SA | The buttstock side must fold last and unfold first to ensure it clears the bolt handle |
| LSS GEN3 CHASSIS | Kelbly’s Atlas SA | Must be installed on non-bolt side |
| LSS GEN3 CHASSIS | Defiance Tenacity SA | The buttstock side must fold last and unfold first to ensure it clears the bolt handle |
Specifications
OVERALL LENGTH
Width – 10.75″
Height – 5.31″
CHEEK RISER ADJUSTMENTS
Back-Front: 0.60”
Height: 1.20”
LENGTH OF PULL (LOP)
12.5in – 13.5in (using 4 included spacers)
WEIGHT
1.35 lbs (21 oz)
BUTTSTOCK INTERFACE
XTN
FINISH
Cerakote
What You Get
SRS-XF PREMIER FOLDING BUTTSTOCK
Included hardware:
- T-handle ball end hex key: 7/32″
- 4x Length of pull spacers (1/4″ each)
- 2x #10-32 x 1.25” screws
- 2x #10-32 x 1.75” screws
ATP is an authorised Australian dealer for MDT. All MDT products bought from ATP are covered by the Australian MDT Warranty.
