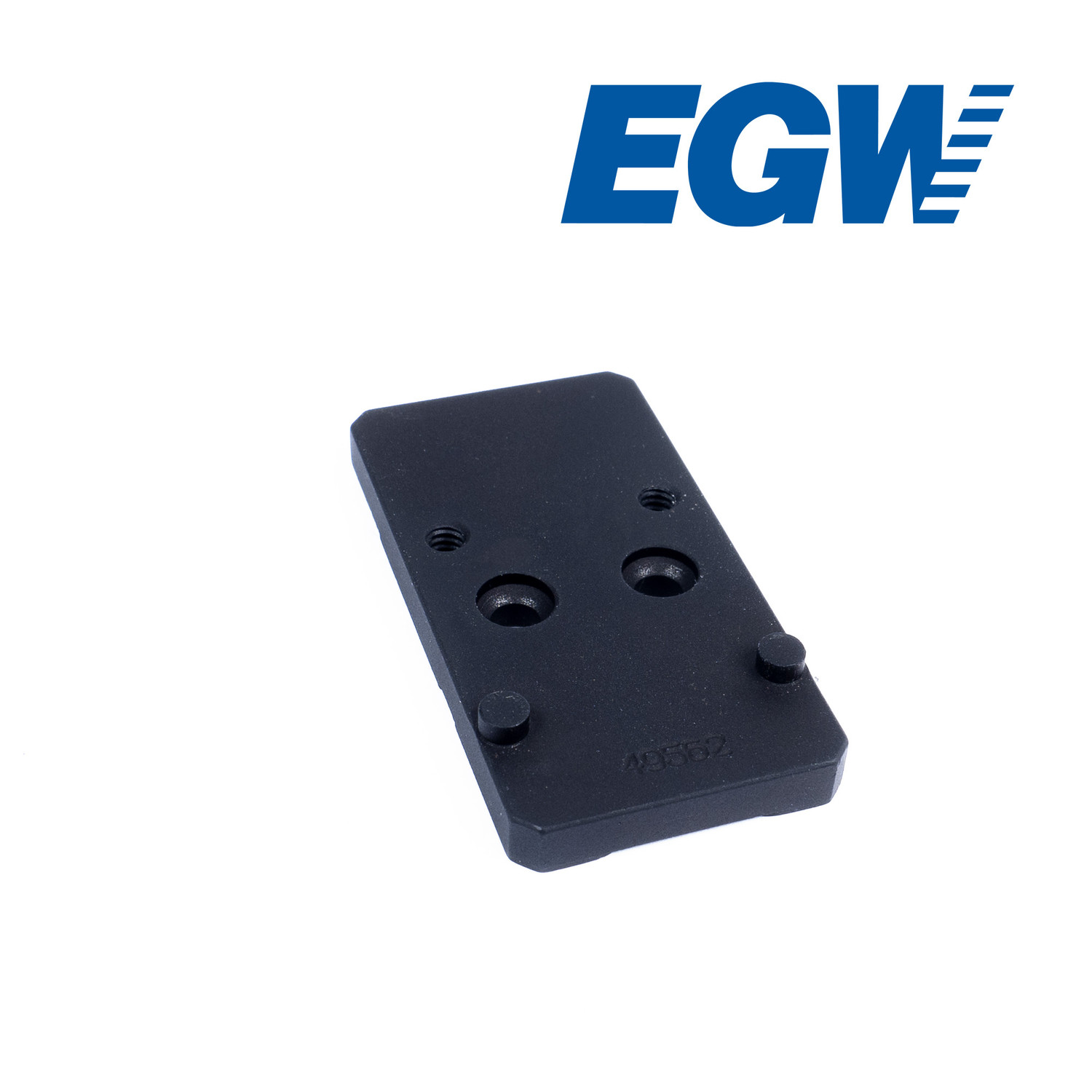

EGW Handgun Pistol Mount for Trijicon, Holosun, Kingslayer Red Dot Sights

$89.95 inc. GST

SKU: N/A Category: Brand:

Simply remove the rear sight on your pistol and replace it with the EGW mount in order to mount your Trijicon RMR/SRO, Holosun or Kingslayer red-dot sight.

No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included.

  • Made in the USA
  • 7075 T6 Aircraft grade aluminium
  • Black models are Type 3 hard coat anodized
  • Mounting screws included

Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

Installation: EGW recommends 15 inch lbs of torque and a drip of blue loctite.

Rear sight pusher tool recommended for installation.

Red Dot Fitment: Trijicon RMR / SRO, Holosun HE407C / HE407C X2 / HE507C / HE507C X2 / HS407C / HS407C X2 / HS507C / HS507C X2, Swampfox Kingslayer / Liberty / Justice

Notes:

LPA LOW MOUNT 49501: This mount fits: Baby Desert Eagle (Post 2006), EAA Witness Elite Match.

Walther 22 49502: This mount is for a Colt Rail Gun 1911 .22lr that has the Walther slide.

DESERT EAGLE (PRE 2017) 49503: Please take note of the Pre 2017 and Post 2017 differences before placing your order: Pre 2017 rear shelf behind the dovetail is .187″. Post 2017 rear shelf behind the dovetail is .120″

FN, FNS, FNX 49504: This mount does not fit the FN Five-seveN (5.7) Does NOT Fit: USP Expert, USP Elite.

H&K USP 49505: DOES NOT FIT THE FOLLOWING: USP Expert, USP Elite, USP Compact. The USP Compact rear sight cut depth is .200″, The standard USP (for this rear sight cut) rear sight cut depth is .160″,

This mount fits: USP Tactical 9mm, USP Tactical .45 ACP, USP 9mm, USP 40 S&W, USP .45 ACP.

EAA Super 49506: This mount fits:
Elite Stock II with adjustable (LPA/Bomar style, shown above) rear sight, Elite Stock III with adjustable (LPA/Bomar style, shown above) rear sight, Hunter with adjustable (LPA/Bomar style, shown above) rear sight, Limited Custom with adjustable (LPA/Bomar style, shown above) rear sight, Limited Custom Xtreme with adjustable (LPA/Bomar style, shown above) rear sight, Match Elite with adjustable (LPA/Bomar style, shown above) rear sight, Match Xtreme with adjustable (LPA/Bomar style, shown above) rear sight, P Match with adjustable (LPA/Bomar style, shown above) rear sight, P Match Pro with adjustable (LPA/Bomar style, shown above) rear sight, Stock II Xtreme with adjustable (LPA/Bomar style, shown above) rear sight, Stock III Xtreme with adjustable (LPA/Bomar style, shown above) rear sight

This mount does not fit: EAA / Tanfoglio Witness with fixed rear sight, EAA / Tanfoglio Witness with Novak style adjustable rear sight.

H&K VP9, P30, P30L, P30SK, HK45, HK45C 49507: This mount fits: H&K VP9, H&K VP9SK’,H&K VP40, H&K P30, H&K P30L, H&K P30SK, H&K 45, H&K 45C

This mount does not fit: HK USP

This mount is not intended for use with the optics ready version of these pistols.

S&W M&P 49508: This mount will fit: Smith & Wesson M&P Full Size, 2.0 Full Size, 22 Full Size, Compact, 2.0 Compact, SD9VE, SD40VE.

This mount does not fit: Smith & Wesson M&P Shield, Shield EZ .380, SW9VE, SW40VE, C.O.R.E Series, M&P .22 Compact.

Smith and Wesson’s rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering. Our return policy does allow for returns of unused and undamaged parts. These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.

S&W 52 49509: This mount fits: Smith & Wesson Model 52

This mount does not fit: Smith & Wesson Model 41

GI 1911 49510: This mount fits: 1911s with a G.I. style rear sight cut

Novak 49511: This mount will fit pistols with a Novak Cut rear sight mount such as STI fixed rear sights, CZ 75 Bull Shadow, Springfield Armoury 1911, GSG 1911, Rock Island, Iver Johnson, and Wilson Combat. CHECK YOUR PISTOL HAS A NOVAK CUT SIGHT BEFORE ORDERING.

Minor modification to the sight base may be necessary for Rock Islands and GSG 1911 .22s.

BOMAR 49512: This sight fits (including but not limited to): STI Edge (either this sight or LPA), Les Baer 1911 (adjustable rear sights), Colt Gold Cup Trophy with Bomar Rear Sight Cut, Colt Gold Cup National Match .45acp, Colt Gold Cup National Match 9mm, Springfield TRP Operator, Dan Wesson Bruin (may require fitting due to the Clark cut on the top of the slide)

Glock 49513: This mount fits all generation Glocks 17 – 48

Does not fit Glock MOS models.

BLANK MOUNT 49514: This mount is a gunsmith fit mount that needs to be machined to fit the dovetail of your choice.

Kimber Fixed 49515: This mount fits: Kimber 1911’s with Fixed Rear Sights, Desert Eagle 1911G*, Desert Eagle 1911C*

This mount does not fit: Kimber Micro, Kimber Micro 9.

*This mount will require a decent amount of fitting to work with the Desert Eagles and is NOT a drop in part on that application.*

Kimber Adjustable 49516: This mount fits:
Kimber 1911 (adjustable rear sights for windage and elevation)
Ruger SR1911 (adjustable rear sights for windage and elevation

LPA 49517: This mount will fit pistols with an LPA Cut rear sight mount such as Sig Sauer 1911, STI adjustable rear sights, Springfield Armoury, Rock Island, Iver Johnson, CHECK YOUR PISTOL HAS A LPA CUT SIGHT BEFORE ORDERING.

Will Not Fit: Para Elite LS Hunter, Remington R1 10mm Hunter

SIG SAUER 49518: THIS MOUNT DOES NOT WORK WITH ANY SIG OPTICS READY PISTOLS (P320 X-CARRY ETC.)

This mount fits (including but not limited to): Sig #8 Sights, P220, P224, P225, P225-A1, P226, P227, P228, P229, P238, P239, P245, P320, P938, SP2022, M11-A1, MK25, Bersa Thunder UC Series (9/40/45), Bersa Thunder HC Series (9/40/45), FN 509.

This mount does not fit: Sig 1911s, Any Optics Ready Sigs i.e. P226 Legion RX, P229 RX, P320 X-Carry etc., P210 Target, P365, FN 509 Tactical.

S&W REVOLVERS 49519: This mount will fit K, L, N, and X frame Smith & Wesson Revolvers.

If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not this mount will not work without you having the gun drilled and tapped.

RUGER REVOLVER 49520: This mount fits the following Ruger Revolvers: Blackhawk, Redhawk, GP100 (with adjustable rear sights), GP100 Match Champion.

This mount does not fit: Ruger Flattop Revolvers

RUGER AUTO 49521: This mount fits the following Ruger pistols: Ruger MK I, MK II, MK III, MK IV, P85, P89, P90-95, P97, 22/45

COLT GOLD CUP 49522: This mount fits the following Colt models: Gold Cup, Trooper Mark 3, Python, Anaconda.

This is for Colt models with the Elliason style adjustable rear sight. The elevation screw from the original rear sight is re-used in the center hole on this mount.

SPRINGFIELD XD 49523: This mount fits the following Springfield XD models: XD MOD.2 – 3″ SUB-COMPACT MODEL, XD MOD.2 – 3.3″ SUB-COMPACT MODEL, XD MOD.2 – 4″ SERVICE MODEL, XD MOD.2 – 4″ SERVICE MODEL THREADED BARREL, XD MOD.2 – 5″ TACTICAL MODEL, XD 3″ SUB-COMPACT MODEL, XD 4″ SERVICE MODEL, XD(M) 3.8″ COMPACT MODEL, XD(M) 3.8″ MODEL, XD(M) 4.5″ MODEL, XD(M) 4.5″ THREADED BARREL MODEL, XD(M) 4.5″ OSP FULL SIZE, XD-S 3.3″ MODEL, XD-E 3.3″ SINGLE STACK

It does not fit: XD(M) 5.25″ COMPETITION SERIES MODEL

Universal 0.468 RAD 49524: This mount has a bottom radius of .468″. There should be a slight gap at the top of the radius between the receiver and the mount when mounted. The two spreads on this mount measure .500″-.505″ and .8625″. This should fit barrel/receiver diameters from .936″-1.350″.

UNIVERSAL 0.670 RAD 49525: This mount has a bottom radius of .670″. There should be a slight gap at the top of the radius between the receiver and the mount when mounted.

Note that this mount is drilled for and only includes #6 screws. If your application requires #8 screws then you will need to source these screws yourself as well as have this mount drilled to suit #8 size screws.

The two spreads on this mount measure .500″-.505″ and .8625″ which should fit the receiver ring on the following guns:

Shotgun: Mossberg 500, 590, 835, 930, 935 Pre ’97, Mossberg 500, 590, 835, 930, 935 Late (after ’97) (Requires 8-40 and Longer Screws), Benelli Auto / Super Black Eagle / Vinchi, M2 (Will Work in the Front Set Only, 8-40 Screws), Benelli Supernova (Will Work in the Front Set Only, 8-40 AND Longer Screws), Browning A-Bolt 12 Gauge, Savage 210, Savage 212, Savage 220, Stoeger M3000 / Stoeger M3500 (Will Work in the Front Set Only, 8-40 Screws), Winchester 1300, Winchester SXP

Rifle: Remington 700, 722, 40x, Remington 783, Remington 710/770, Remington xp 100, Remington 4, 6, 7400, 7615 (Front Set Only, 8-40 Screws), Savage Arms Centerfire Models, Winchester 70.

CZ 75, 75 SP-01 Phantom, 85, P01, P07, P09, and PCR 49526: This mount fits: CZ 75, CZ 75 SP-01, CZ 75 SP-01 Phantom, CZ 85, CZ 97B, CZ 97D, CZ P-01, CZ P-07 (not recommended due to dovetail dimensions), CZ P-09 (not recommended due to dovetail dimensions), CZ PCR (there will be a gap under the front of the adapter plate), Tristar P120

This mount does not fit the CZ P-07 or CZ P-09

(Does NOT fit any of the SP-01 Shadow variants)

S&W M&P 22 COMPACT 49527: Using this mount in combination with a red dot sight will increase the weight on the slide of your firearm. This may lead to cycling issues especially in .22s.

SIG 220 10mm HUNTER 49528: This mount fits: Sig P220 10mm Hunter, Sig P220 Super Match SAO, Sig P220 Match Elite (with adjustable sights).

CZ P10 C 49529: This Mount Fits: CZ P10C, CZ P10F

This Mount Does Not Fit: CZ P10C Optics Ready, CZ P10F Optics Ready

S&W 1911 FIXED SIGHTS 49530: Will fit S&W 1911 with Fixed Rear Sights, will not fit models with adjustable rear sights.

Ruger PC Carbine/Marlin 1894 49531: This Mount Fits: Ruger PC Carbine, Henry Golden Boy, Henry Long Ranger, Marlin 1894, Marlin 1895.

CZ Shadow 2 49532: CZ 75 Shadow, CZ 75 SP01 Shadow, CZ Shadow 2, Dan Wesson DWX, Dan Wesson DWX Compact

This mount does not fit: Shadow 2 OR (Optics Ready)

Sig P210A 49533: This mount fits: Sig P210A Target

This mount for the P210 is made specifically for the U.S. made P210s. The front of the mount will need to be cross drilled to fit each individual gun. The pin from the factory rear sight may be reused as well.

The hole dimension for the cross hole is 2.04mm. There are 2.04mm drill bits available from sites like Grainger, but you may also be able to use a 5/64″ bit to mark the hole on the mount and a 3/32″ bit to drill the hole. Sig uses a 2mm coiled spring pin to hold the original sight in place.

DESERT EAGLE (POST 2017) 49534: Please take note of the Pre 2017 and Post 2017 differences before placing your order: Pre 2017 rear shelf behind the dovetail is .187″. Post 2017 rear shelf behind the dovetail is .120″

S&W 1911 ADJ SIGHTS 49535: Will fit S&W 1911 with Adjustable Rear Sights, will not fit models with fixed rear sights.

Walther PPQ 49536: This mount fits the following Walther models: PPQ Classic (M1), PPQ M2 (All Models), PPQ 45, PPQ 45 SD, PPQ Sub Compact, P99 (All Models), PPX (All Models), Creed, Creed 10 Round, PPS (All Models), PPS M2 (All Models).

This mount does not fit: Walther PPQ 22, PPQ Q4 Tac, Q5 Match

The PPQ sight has a hole drilled in the bottom of the dovetail to accommodate the plunger on some models of the Walthers. This plunger may also be removed from the slide if desired.

Walther PPQ 22LR 49538: This mount fits the Walther PPQ .22LR.

This mount does not fit: Walther PPQ 22, Walther PPQ Q4 Tac, Walther Q5 Match.

The PPQ sight has a hole drilled in the bottom of the dovetail to accomodate the plunger on some models of the Walthers. This plunger may also be removed from the slide if desired.

Savage / Stevens 301 .410 Models 49539: This mount fits: Factory Drilled and Tapped Stevens 301 .410 gauge models only. This mount measures .350″ from the top of the barrel to the top of the mount.

This mount does not fit: Stevens 301 .12ga and 20ga Models

Ruger SR9/SR40 / SR45 49540: This mount fits: Ruger SR9, Ruger SR9C, Ruger SR40, Ruger SR40C, Ruger SR45

This mount does not fit: Ruger SR9E, Ruger SR22

Taurus G2, G3, PT111 G2, PT140 G2, PT709, PT740 and TX22 49541: This mount fits: Taurus G2S, Taurus G2C, Taurus G3 (old style rear sight, not new Glock style), Taurus PT111 G2, Taurus PT140 G2, Taurus PT709, Taurus PT740, Taurus TX22.

Walther Q5 Match 49543: This mount fits: Walther Q4 Steel Frame OR, Q4 Tac M1, Q4 Tac M2, Q5 Match M1, Match M2, Match Steel Frame Standard, Match Steel Frame Professional, Q5 Match Steel Frame Standard 10R
This mount does not fit: Walther Q5 Match SF Arabesque, Q5 Match SF Patriot, Q5 Match SF Black Diamond, Q5 Match SF Match Black Tie

HK VP9 / VP9L Optics Ready 49544: This mount fits HK VP9 Optics Ready Models, VP9 Optics Ready, VP9L Optics Ready, VP9 Tactical Optics Ready.
If your gun has a cut out for the optics plate, this plate will work with your application.
(This mount is comparable to the HK VP9 Optics Ready #2 Plate)

Savage / Stevens 301 49545: This mount fits: Factory Drilled and Tapped Stevens 301 12 and 20 gauge models only. This mount measures .350″ from the top of the barrel to the top of the mount.

This mount does not fit: Stevens 301 .410 Models

Vortex Spitfire HD Gen II 5x 49547: This mount provides a Trijicon Adaptor Mount to the top of your Vortex Spitfire HD Gen II 5x red dot. Includes screws to mount the red dot to the plate. We recommend using 15 in/lbs. The mounting screws to mount the adapter plate to the optic are not provided.

Springfield Hellcat Optics Ready 49548: The EGW red dot sight mount adapter plates for the Springfield Hellcat Optics Ready pistols are meant to be installed in place of the factory mounting plate. This mount fits: Springfield Hellcat Optics Ready, Springfield Hellcat Pro Optics Ready

SIG P365X /XL Optics Ready 49549: The EGW red dot sight mount adapter plates for the Sig Sauer P365 Optics Ready pistols are meant to be installed in place of the factory mounting plate. This mount fits: Sig Sauer P365X Optics Ready and Sig Sauer P365XL Optics Ready (Will only fit models that have rear sight incorporated in cover plate)

This mount does not fit: Sig Sauer P365 SAS, Sig Sauer P365XL With Stand Alone Rear Sight, Sig Sauer P365 XMACRO.

H&K USP 49550: DOES NOT FIT THE USP COMPACT. The USP Compact rear sight cut depth is .200″, The standard USP (for this rear sight cut) rear sight cut depth is .160″

This mount fits: USP Tactical 9mm, USP Tactical .45 ACP, USP 9mm, USP 40 S&W, USP .45 ACP.

Does NOT Fit: USP Expert, USP Elite.

Ruger Security 9 and 380 49551: This mount fits Ruger Security 9 and Ruger Security 380.

Beretta 92 49552: This mount fits: Beretta 92 FS, Beretta 92 G, Beretta 92 FS Fusion, Beretta 92 Fusion Black, Beretta 92 Fusion Blu, Beretta 92 FS Inox, Beretta 92 A1, Beretta 92 FS Brigadier, Beretta 92 FS Brigadier Inox, Beretta 92 G Elite, Beretta 92 Compact, Beretta 92 Compact w/ Rail, Beretta 92 Compact with Rail Inox, Beretta 92 Vertec Inox, Beretta 92G-SD, Beretta 92X Centurion, Beretta 92X Compact, Beretta 92X Compact w/ Rail, Beretta 92X Full Size, Beretta 98 A1, Beretta 98 FS, Beretta 90 Series Inox, Beretta M9, Beretta M9 Exclusive, Beretta M9A1, Beretta M9A3, Beretta M9A3 Black, Beretta 98 FS Inox, Beretta m9 22lr.

This mount does not fit (including but not limited to): Beretta 92 Optics Ready Models, Beretta 92 FS Centennial, Beretta 92 Performance, Beretta 92 Performance Defensive, Beretta 92 RDO Compact Y22, Beretta M9 A4 Centurion Y22, Taurus 92.

Ruger Max-9 49553: This mount fits Ruger Max-9. This adapter plates for the Ruger Max-9 Optics Ready pistols are meant to be installed in place of the factory mounting plate. Simply remove the sight plate on your gun and replace it with our mount in order to mount your red-dot sight.

Sig P322 Optics Ready 49558: This mount fits Sig Sauer P322 Optics Ready. This adapter plates for the Sig Sauer P322 Optics Ready pistols are meant to be installed in place of the factory mounting plate. Simply remove the sight plate on your gun and replace it with our mount in order to mount your red-dot sight.

CZ TS 2 49559: This mount fits: CZ TS 2 Models, CZ 75 Tactical Sports, CZ TS Czeckmate, CZ Ts Orange.
This mount does not fit ANY/ALL CZ slides that are already cut for optics.

Picatinny Mount for Holosun 407C/507C/508T 49600: This mount fits: Trijicon RMR, Trijicon SRO, Holosun 407C, Holosun 407C X2, Holosun 507C, Holosun 507C X2, Holosun 508T, Swampfox Kingslayer, Swampfox Liberty, Swampfox Justice.

This mount does not work with Weaver rails.



Available for the following:

#49501: LPA Low Mount
#49502: Walther 22
#49503: Desert Eagle (Pre 2017)
#49504: FN FNS, FNX
#49505: H&K USP
#49506: EAA Super Sight
#49507: H&K VP9, P30, P30L, P30SK, HK45, HK45C, VP40
#49508: S&W M&P
#49509: S&W 52
#49510: GI 1911
#49511: Novak
#49512: Bomar
#49513: Glock
#49514: Blank Mount
#49515: Kimber Fixed
#49516: Kimber Adjustable
#49517: LPA
#49518: Sig P220-229, 320
#49519: S&W Revolver
#49520: Ruger Revolver
#49521: Ruger Auto (Mk 1, Mk 2, Mk 3, Mk 4, P85, P90)
#49522: Colt Gold Cup
#49523: Springfield XD
#49524: Universal Mount .468″ Radius
#49525: Universal Mount .670″” Radius
#49526: CZ 75, 75 SP-01 Phantom, 85, P01, and PCR (Does NOT fit SP-01 Shadow variants)
#49527: S&W M&P .22 Compact
#49528: Sig P220 10MM Hunter
#49529: CZ P-10 C
#49530: S&W 1911 Fixed
#49531: Marlin 1894, 1895, Henry H009, H010, Ruger PC Carbine
#49532: CZ SP-01 Shadow and Shadow 2
#49533: Sig P210A (American Only Post 2016)
#49534: Desert Eagle (Post 2017)
#49535: S&W 1911 Adjustable
#49536: Walther PPQ P2
#49538: Walther PPQ 22LR
#49539: Savage 301 410 Gauge
#49540: Ruger SR9/ SR40 / SR45
#49541: Taurus G2, G3, PT111 G2, PT140 G2, PT709, PT740 and TX22
#49543: Walther Q5 Match
#49544: HK VP9 / VP9L Optics Ready
#49545: Savage 301 12 and 20 Gauge
#49546: Taurus PT1911
#49547: Vortex Spitfire HD Gen II 5x
#49548: Springfield Hellcat Optics Ready
#49549: Sig P365 Optics Ready
#49550: HK USP Compact
#49551: Ruger Security 9
#49552: Beretta 92
#49553: Ruger Max 9
#49556: Sig Mosquito and GSG Firefly
#49557: Kimber Micro 9
#49558: Sig P322 Optics Ready
#49559: CZ TS2
#49600: Picatinny Rail Mount

ATP is an authorised Australian dealer for EGW. All EGW products bought from ATP are covered by EGW’s Australian Warranty.

Weight 0.101 kg
Part Number

#49501: LPA Low Mount, #49502: Walther 22, #49503: Desert Eagle (Pre 2017), #49504: FN FNS, FNX, #49505: H&K USP, #49506: EAA Super Sight, #49507: H&K VP9, P30, #49508: S&W M&P, #49509: S&W 52, #49510: GI 1911, #49511: Novak, #49512: Bomar, #49513: Glock, #49514: Blank Mount, #49515: Kimber Fixed, #49516: Kimber Adjustable, #49517: LPA, #49518: Sig P220-229, 320, #49519: S&W Revolver, #49520: Ruger Revolver, #49521: Ruger Auto (Mk 1, Mk 2, Mk 3, Mk 4), #49522: Colt Gold Cup, #49523: Springfield XD, #49524: Universal Mount .468" Radius, #49525: Universal Mount .670"" Radius, #49526: CZ 75, Phantom, 85, P01, #49527: S&W M&P .22 Compact, #49528: Sig P220 10MM Hunter, #49529: CZ P-10 C, #49530: S&W 1911 Fixed, #49531: Marlin 1894, 1895, Henry H009, Ruger PC Carb, #49532: CZ SP-01 Shadow 1 and 2, #49533: Sig P210A (American Only Post 2016), #49534: Desert Eagle (Post 2017), #49535: S&W 1911 Adjustable, #49536: Walther PPQ P2, #49538: Walther PPQ 22LR, #49539: Savage 301 .410 Ga, #49540: Ruger SR9/ SR40 / SR45, #49541: Taurus G2, G3, PT111 G2, PT140 G2, #49543: Walther Q5 Match, #49544: HK VP9 Optics Ready, #49545: Savage 301 12 and 20 Ga, #49546: Taurus PT1911, #49547: Vortex Spitfire HD Gen II 5x, #49548: Springfield Hellcat Op Ready, #49549: Sig P365 Optics Ready, #49550: HK USP Compact, #49551: Ruger Security 9, #49552: Beretta 92, #49553: Ruger Max 9, #49556: Sig Mosquito, GSG Firefly, #49557: Kimber Micro 9, #49558: Sig P322 Optics Ready, #49559: CZ TS2, #49600: Picatinny Rail Mount
