Perfect for getting your night vision or thermal optic closer to your eye.

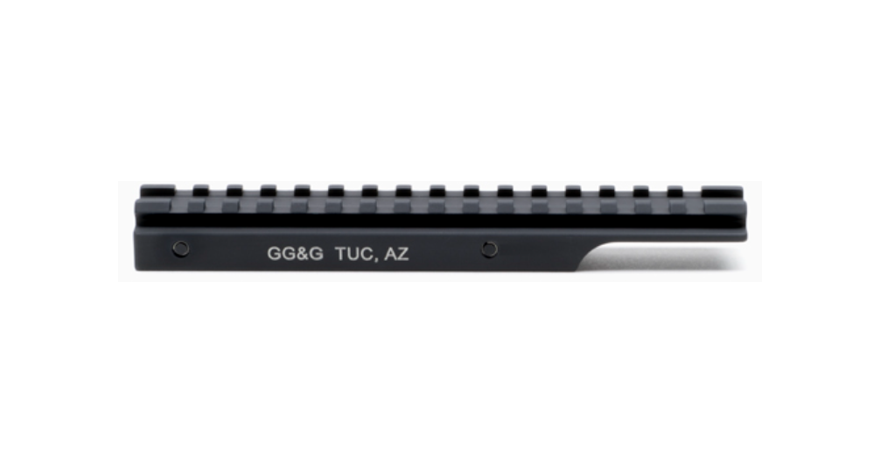

The GG&G optical mounting rail is designed to mount easily over the integral rails of the AR-15/M16 flat top receiver and work in conjunction with any of our back up iron sights. The rails mounting brackets raise the line of sight by 1/2 inch, to offer a proper cheek weld when optical devices are attached. In addition, they serve to protect the flat top receiver’s integral rails from the damaging wear associated with lever type quick-release mounts, especially those without buffer pads. The GG&G Scout Rail extends two inches beyond the upper receiver and cantilevers over the handguards including the M4 forearm. It was developed to accommodate long-eye-relief “scout”-type scopes and Aimpoint red dot sights with night vision monocular mounted to their rear.
Specifications
- The GG&G AR Scout Length Scope Mount attaches directly to a picatinny scope rail.
- Raises line of sight by 1/2 inch.
- Works with GG&G’s MAD or A2 rear back up iron sights.
- Offers the proper cheek weld height when used with optics.
- Protects receiver’s integral rails from wear or damage.
- Overall length is 7 inches. Extends 2 inches over the handguards and will clear Mil-Spec M4 handguards.
- This can be run backwards so that it extends towards your eye, great for thermal/DNV scopes with short eye relief.
- The dovetail is manufactured to MIL-STD-1913.
- Full length sidebar provides positive and perfectly aligned lock up even on worn or out of spec upper receivers.
- Materials: CNC Machined from tough but light weight 6061-T6 billet aluminum.
- Finish: Type III hard coat anodized non-reflective matte black per Mil-Spec.
- Weight: 4.3 oz
- Warranty: Lifetime.
- Made In the USA
