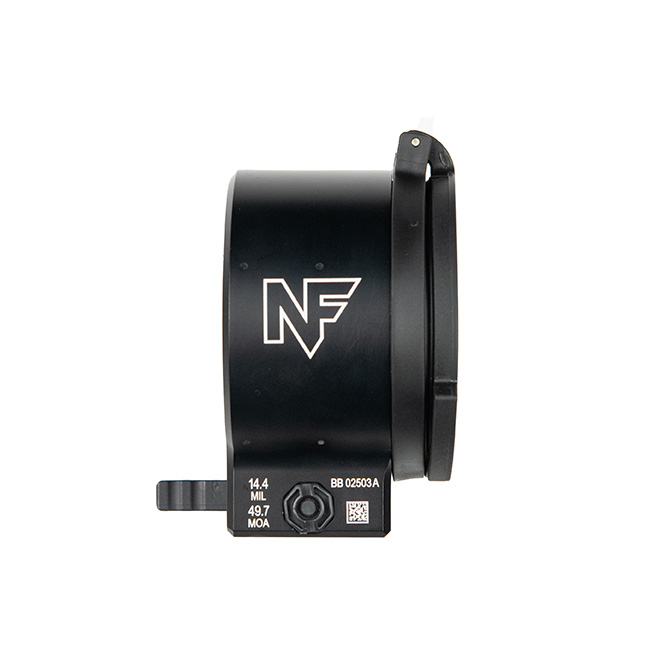

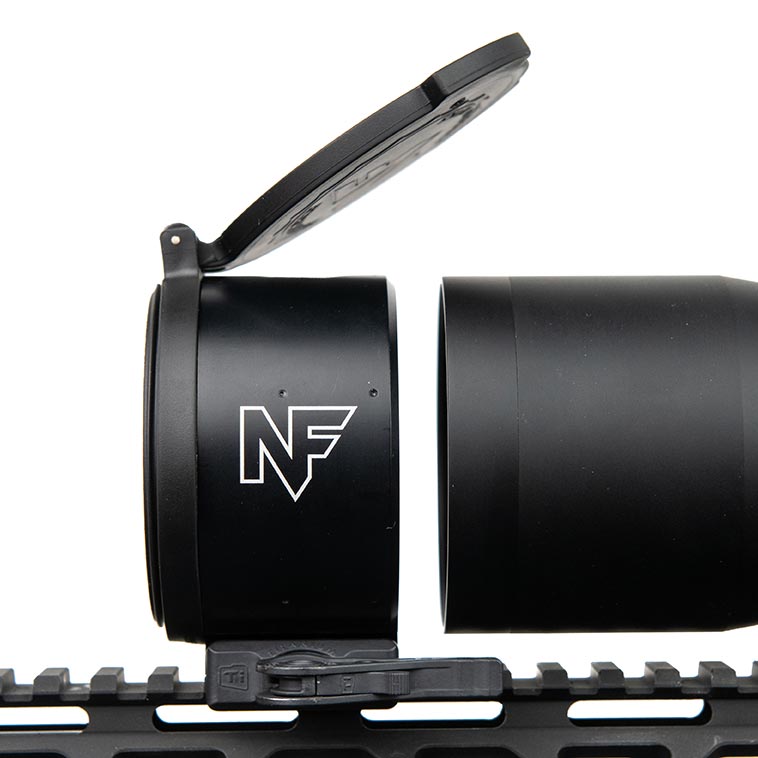

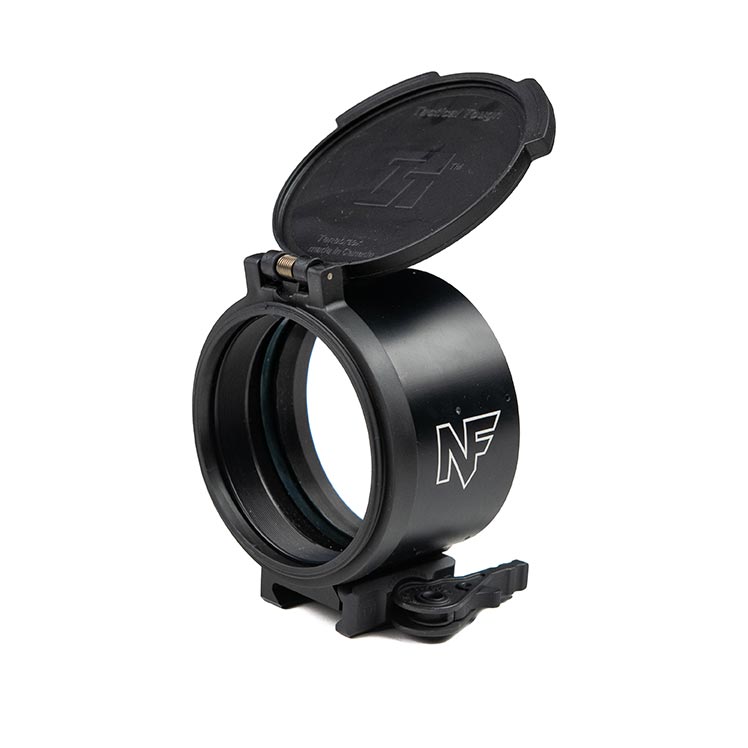

When shooting at extreme ranges, many shooters find their riflescope lacks the necessary elevation travel. The Nightforce Wedge Prism is offered in 2 variants, 50 MOA or 100 MOA, that install forward of the riflescope to increase the effective elevation travel. The Wedge Prism optically shifts the incoming image to the riflescope by a precise elevation value, which directly adds to the available elevation travel within the riflescope.
Key Features:
• 50 MOA/14.5 MRAD* or 100 MOA/29.1 MRAD* elevation shift variants available for extreme
long-range use
• Quick Detach MIL-STD 1913 attachment ensures consistent elevation shift when installed
in the field
• Compatible with all brands of riflescopes
• Exact elevation shift measured for each unit and engraved for reference in the field
Includes: MOLLE padded carry case, flip cap lens cover, lens cleaning cloth.
* The listed optical shift is a nominal value. The actual shift varies slightly and is measured and engraved on each unit.
Available in:
| Part # | Product Description |
|---|---|
| A540 | Wedge Prism – 50MOA/14.5MRAD Additional Elevation |
| A541 | Wedge Prism – 100MOA/29MRAD Additional Elevation |
Specifications
| Optical Shift | 50 MOA / 14.5 MRAD* |
| 100 MOA / 29.1 MRAD* | |
| Length | 1.8 in / 46 mm |
| (excluding lever) | |
| Width | 2.7 in / 69 mm |
| Height | 3.3 in / 38 mm |
| Glass Centerline | 1.5 in / 38 mm |
| Weight | 9.2 oz / 262 g |
| (100 MOA) | |
| 9.5 oz /268 g | |
| (50 MOA) | |
| Mounting System | MIL-STD 1913 |
| (1.5in / 3 slots) |
* The listed optical shift is a nominal value. The actual shift varies slightly and is measured and engraved on each unit.
ATP is an authorised Australian dealer for Nightforce. All Nightforce products bought from ATP are covered by the Australian Nightforce warranty.
